NXP USA Inc. 74HCT08D/AU118

Part No.:: 74HCT08D/AU118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HCT08D/AU118.pdf

Description:: IC GATE AND 4CH 2-INP 14SO

In Stock:: 3872

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT08D/AU118 Specifications

Packaging:
Bulk
Series:
74HCT
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 5.2mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
24ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT08D/AU118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT08D/AU118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT08D/AU118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT08D/AU118 information

Views：

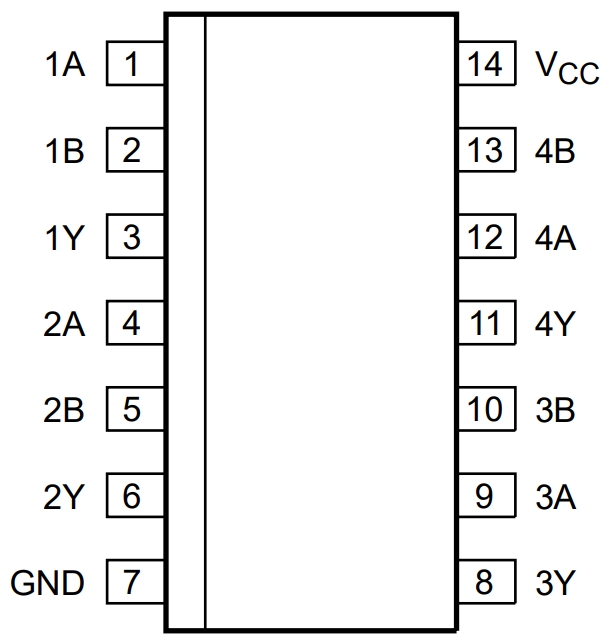

74HCT08D/AU118 Typical application Circuitry

74HCT08D AU118

74HCT08D/AU118 is a quadruple 2-input AND gate integrated circuit (IC) that belongs to the high-speed CMOS (HCMOS) family. The device consists of four independent 2-input AND gates, each with its own input and output pins.

Applications of 74HCT08D/AU118 include but are not limited to:

- Digital logic circuits

- Signal gating

- Data synchronization

- Pulse shaping

Key Parameters and Characteristics of 74HCT08D/AU118:

- Supply Voltage (Vcc): 4.5V to 5.5V

- Operating Temperature: -40°C to +85°C

- Input Voltage (V_I): 0V to Vcc

- Output Voltage (V_O): 0V to Vcc

- Propagation Delay (t_pd): Approximately 8ns at 5V

Now, let's consider a specific application scenario, where 74HCT08D/AU118 is used to synchronize two digital signals.

Circuit Connection:

1. Connect Power and Ground: Connect Vcc (pin 14) to a 5V supply and GND (pin 7) to the ground.

2. Input Signal Connection: Connect the first input signal to A1 (pin 1) and the second input signal to 74HCT08D/AU118 B1 (pin 2).

3. Output Signal Connection: Connect the output of the first AND gate (Y1, pin 3) to the input of the device or circuit you want to control with the synchronized signal.

Design considerations:

1. Supply Voltage: Verify that the supply voltage falls between the 4.5V and 5.5V range.

2. Input Signals: Ensure that the input signals are within the specified range of 0V to Vcc.

3. Output Load: The output load should not exceed the maximum current rating of the AND gate.

4. Propagation Delay: Consider the propagation delay of approximately 8ns when designing time-critical applications.

In conclusion, 74HCT08D/AU118 is a versatile quadruple 2-input AND gate IC with a wide range of applications in digital logic circuits, signal gating, data synchronization, and pulse shaping. It is important to consider the supply voltage, input signals, output load, and propagation delay when designing circuits with this IC.
