Name: 74HCT04DTR2G
Brand: ON Semiconductor
SKU: 74HCT04DTR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 74HCT04DTR2G

Part No.:: 74HCT04DTR2G

Manufacturer:: ON Semiconductor

Package:: 14-TSSOP

Datasheet:: 74HCT04DTR2G.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 117534

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04DTR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HCT
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
17ns @ 5V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

74HCT04DTR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04DTR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04DTR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04DTR2G information

Views：

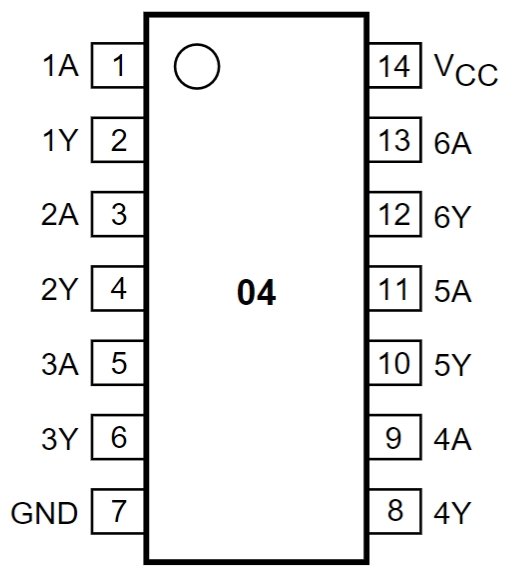

74HCT04DTR2G Typical application Circuitry

74HCT04DTR2G

The 74HCT04DTR2G is an integrated circuit belonging to the high-speed CMOS (HCMOS) family. It comprises six independent inverters, designed for performing the logic INVERT function. This chip is characterized by its compatibility with TTL levels, low power consumption, and high noise immunity.

Application Scenarios

The 74HCT04DTR2G finds its utility in digital electronics where signal inversion is critical. It can be used in pulse generators, waveform converters, digital clocks, and timing circuits. Additionally, it serves as an essential component in complex logic circuits, providing the necessary inversion function to implement various logic gates and configurations.

Parameter Features

- Operating Voltage Range: Typically supports a voltage range from 4.5V to 5.5V, making it adaptable to various digital systems.

- Low Power Consumption: Its efficient design ensures minimal power usage, an important attribute for battery-operated devices.

- High Noise Immunity: Offers reliable performance in environments with significant electrical noise, ensuring signal integrity.

- TTL Compatibility: Easily interfaces with TTL logic levels, allowing for seamless integration into mixed-technology systems.

Specific Application Circuit Design: Pulse Generator

Designing a pulse generator circuit using the 74HCT04DTR2G involves detailed attention to the following key aspects.

- Initial Configuration: Utilize one inverter for the pulse generation. Connect the input of the first inverter (pin 1) to a switch that toggles between Vcc (for a HIGH signal) and GND (for a LOW signal), enabling manual pulse initiation.

- Output Feedback Loop: Connect the output of the first inverter (pin 2) through a resistor (R1) back to its input, creating a feedback loop that stabilizes the HIGH or LOW state after the switch is released.

- Capacitor for Pulse Control: Place a capacitor (C1) between the input of the inverter (pin 1) and GND. This capacitor charges when the switch is closed (input LOW) and discharges through R1 when the switch is opened, generating a pulse.

- Supply Voltage and Grounding: Ensure the 74HCT04DTR2G's Vcc pin (pin 14) is connected to a 5V power source and the GND pin (pin 7) to ground. This stable power setup is crucial for consistent circuit operation.

Design Considerations

When designing with the 74HCT04DTR2G, several factors must be taken into account:

- Power Supply Integrity: Fluctuations in the power supply can affect the performance of the 74HCT04DTR2G. Use capacitors near the Vcc and GND pins for decoupling to mitigate potential issues.

- Component Selection: The values of R1 and C1 critically determine the pulse width and frequency. Selection should be based on the desired timing characteristics of the pulse generator.

- Signal Integrity: Long connections and improper layout can introduce unwanted capacitance and inductance, potentially distorting the generated pulse. Careful PCB layout is essential to minimize these effects.

- Thermal Management: Even though the 74HCT04DTR2G is designed for low power consumption, it's important to consider heat dissipation in designs where multiple inverters are used simultaneously or in high-frequency applications.

Implementing a pulse generator with the 74HCT04DTR2G illustrates the chip's versatility in digital electronics, enabling precise control over timing and signal generation in a variety of applications.
