Name: 74HCT04DR2G
Brand: ON Semiconductor
SKU: 74HCT04DR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 74HCT04DR2G

Part No.:: 74HCT04DR2G

Manufacturer:: ON Semiconductor

Package:: 14-SOIC

Datasheet:: 74HCT04DR2G.pdf

Description:: IC INVERTER 6CH 1-INP 14SOIC

In Stock:: 71313

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04DR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HCT
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
17ns @ 5V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

74HCT04DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04DR2G information

Views：

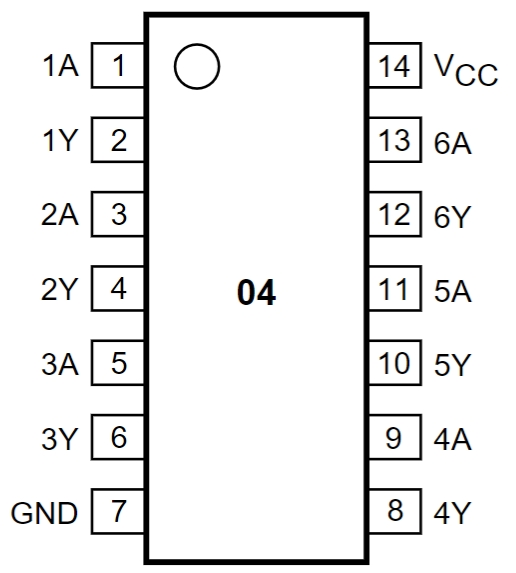

74HCT04DR2G Typical application Circuitry

74HCT04DR2G

The 74HCT04DR2G is a high-speed CMOS device that comprises six independent inverters, designed to perform the logic INVERT function. It's characterized by its compatibility with TTL signal levels, making it highly versatile for interfacing in mixed-technology environments. The 74HCT04DR2G features low power consumption and high noise immunity, essential for reliable operation in a broad range of digital applications.

Application Scenarios

The 74HCT04DR2G is extensively used in digital circuits requiring signal inversion, such as in timing circuits, digital oscillators, logic gates implementation, and signal conditioning applications. Its ability to ensure signal integrity through noise-prone environments makes it suitable for digital communication systems, data processing units, and electronic instrumentation.

Parameter Features

- Operating Voltage Range: This device typically operates within a 4.5V to 5.5V range, accommodating various digital system requirements.

- Low Power Consumption: Its efficient design ensures that the device operates with minimal power usage, ideal for energy-sensitive projects.

- High Noise Immunity: With its high noise threshold, the 74HCT04DR2G guarantees signal integrity, even in environments with significant electrical interference.

- TTL Compatibility: Ensures seamless integration with TTL-based components, facilitating easy adoption into existing designs.

Specific Application Circuit Design: Digital Oscillator

Designing a digital oscillator circuit using the 74HCT04DR2G involves several key steps, each requiring careful attention to detail.

- Oscillator Core: Utilize two inverters in sequence to form the oscillator. Attach pin 2 (the first inverter's output) to pin 3 (the second inverter's input) in this manner.

- Feedback System: Make a feedback loop that goes from the first inverter's (pin 1) input to the second inverter's (pin 4) output. This loop is critical for sustaining oscillations.

- Frequency Control Components: Integrate a resistor (R1) and a capacitor (C1) within the feedback loop. Attach R1 to the first inverter's (pin 1) input and the second inverter's (pin 4) output. Attach pin 1 (the first inverter's input) of C1 to ground (GND). The oscillation frequency is determined by the values of R1 and C1.

- Power Supply and Grounding: Ensure the 74HCT04DR2G's Vcc pin (e.g., pin 14) is connected to a suitable power supply within the 4.5V to 5.5V range, and the GND pin (e.g., pin 7) is properly grounded. Maintaining a steady power source is essential for reliable oscillator operation.

Design Considerations

When creating circuits with the 74HCT04DR2G, several important factors must be considered:

- Component Selection: The choice of R1 and C1 is pivotal. Their values directly impact the frequency and stability of the oscillator, requiring precise calculation and selection based on desired output characteristics.

- Layout Considerations: Minimize the length of traces between components to reduce potential signal distortion caused by parasitic capacitance and inductance. This consideration is especially important in high-frequency oscillator designs.

- Power Stability: Voltage fluctuations in the power supply can affect oscillator performance. Implementing voltage regulation and decoupling capacitors close to the Vcc and GND pins can help mitigate these effects.

- Thermal Considerations: Although the 74HCT04DR2G is designed for low power consumption, operation in high-frequency applications or in environments with limited ventilation may lead to temperature increases that could impact device performance.

Implementing a digital oscillator with the 74HCT04DR2G exemplifies the device's utility in creating reliable, precise timing elements for a myriad of digital applications, showcasing its importance in modern electronic design.
