Name: 74HCT04DB-Q100118
Brand: NXP USA Inc.
SKU: 74HCT04DB-Q100118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

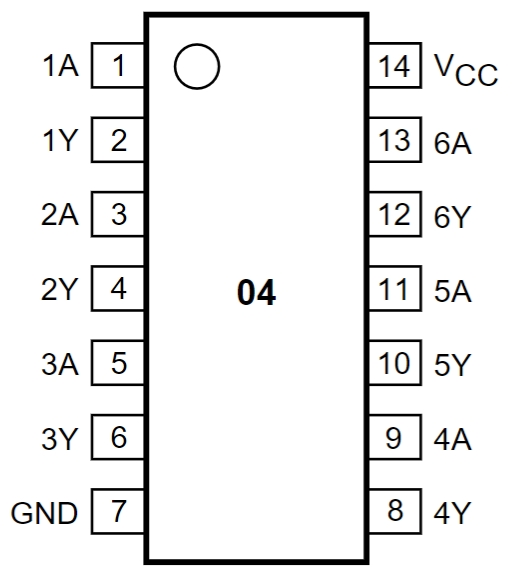

lmages are for reference only See Product Specifications

NXP USA Inc. 74HCT04DB-Q100118

Part No.:: 74HCT04DB-Q100118

Manufacturer:: NXP USA Inc.

Package:: 14-SSOP

Datasheet:: 74HCT04DB-Q100118.pdf

Description:: IC INVERTER 6CH 1-INP 14SSOP

In Stock:: 1880

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04DB-Q100118 Specifications

Packaging:
Bulk
Series:
Automotive, AEC-Q100, 74HCT
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 5.2mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
19ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT04DB-Q100118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04DB-Q100118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04DB-Q100118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04DB-Q100118 information

Views：

74HCT04DB-Q100118 Typical application Circuitry

74HCT04DB-Q100118

74HCT04DB-Q100118 is a high-speed CMOS logic chip, consisting of six independent inverters integrated into one circuit. It is used to implement basic digital logic functions, such as signal inversion, waveform shaping, and logic level conversion, and finds wide application in digital circuits.

Application Scenarios

A typical application scenario is to use 74HCT04DB-Q100118 to create a simple crystal oscillator circuit. Crystal oscillators are common clock sources in electronic devices, providing stable clock signals.

Parameter Features

- Power Supply Voltage Range: Adapts to a wide range of power supply voltages, typically between 4.5V and 5.5V.

- High-Speed Performance: It has high transmission speed and short response time.

- Low Power Consumption: In CMOS technology, power consumption is minimal except during switching.

- Compatibility: Compatible with TTL logic levels, facilitating interconnection with other logic families.

Specific Circuit Connection

When designing a crystal oscillator circuit, the following points can be detailed:

- Crystal and Capacitor Selection: Firstly, select a suitable crystal oscillator (crystal) and two matching load capacitors. The crystal frequency is determined based on actual application requirements.

- Connect the Crystal: Connect the two pins of the crystal oscillator to one of the inverters' input and output terminals of the 74HCT04DB-Q100118. Assuming the first inverter is used, one end of the crystal connects to pin 1 (input), the other end is grounded via a load capacitor, and from there to pin 2 (output).

- Feedback Network: To form an oscillator, a feedback signal needs to be taken from pin 2 (output) and connected through an appropriate resistor to pin 1 (input).

- Output Buffer: Considering signal stability and driving capability, another inverter can serve as an output buffer stage by connecting the output of the first inverter (pin 2) to the input terminal of another inverter, thereby improving the quality and driving capability of the output signal.

Design Considerations

When designing the circuit, several considerations need to be taken into account:

- Selection of Load Capacitors: The selection of load capacitors directly affects the accuracy and stability of the oscillation frequency. Suitable load capacitors should be chosen based on the crystal's specifications and the manufacturer's recommendations.

- Power Supply Stability: Due to the sensitivity of 74HCT04DB-Q100118 to power supply stability, it's essential to ensure stable power supply to avoid power supply noise interfering with the oscillator's normal operation.

- Temperature Effects: Temperature variations can affect the frequency stability of the crystal oscillator. Therefore, in high-precision applications, temperature compensation or the use of temperature-compensated crystal oscillators may need to be considered.

- Through the detailed explanation above, it can be seen that 74HCT04DB-Q100118 offers flexibility and practicality in designing digital circuits. With proper design and layout, this chip can be used to achieve stable and reliable circuit designs.
