NXP USA Inc. 74HCT04D/AUJ

Part No.:: 74HCT04D/AUJ

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HCT04D/AUJ.pdf

Description:: IC INVERTER 6CH 1-INP 14SO

In Stock:: 2609

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04D/AUJ Specifications

Packaging:
Tape & Reel (TR)
Series:
74HCT
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 5.2mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
19ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT04D/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04D/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04D/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04D/AUJ information

Views：

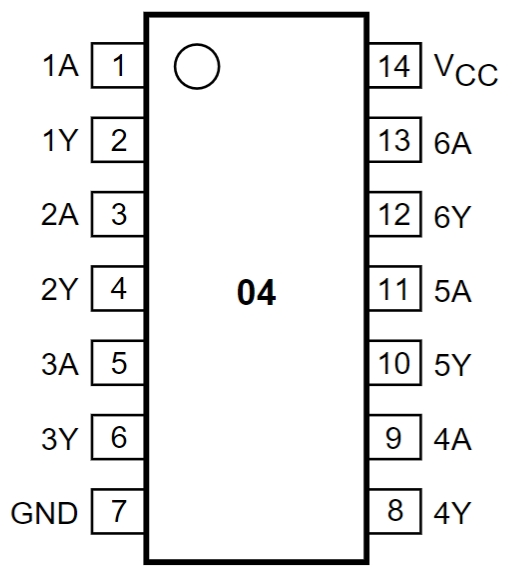

74HCT04D/AUJ Typical application Circuitry

74HCT04D AUJ

The 74HCT04D/AUJ is an integrated circuit that belongs to the high-speed CMOS technology family. It is comprised of six independent inverters. This chip is designed to perform the logic INVERT function, offering a high noise immunity and low power consumption, making it well-suited for implementing logic gates, oscillators, and buffer circuits in a wide range of applications.

Application Scenarios

The 74HCT04D/AUJ is commonly used in digital signal processing where signal inversion is needed, such as in digital clocks, timing circuits, and wave generation circuits. Its ability to convert a digital signal from high to low or low to high makes it versatile in digital electronics, including computer logic systems, where it can be used for signal conditioning or as a simple logic inverter.

Parameter Features

- Low Power Consumption: Ideal for battery-operated applications due to its high efficiency.

- Wide Operating Voltage Range: Typically supports a voltage range from 4.5V to 5.5V, compatible with TTL levels.

- High Noise Immunity: Features a robust design that resists electrical noise, ensuring signal integrity.

- Speed: Capable of fast switching, which is crucial for high-speed digital circuits.

Specific Application Circuit Design: Square Wave Oscillator

In designing a square wave oscillator circuit using the 74HCT04D/AUJ, several critical aspects must be meticulously detailed.

- Oscillator Setup: To create an oscillator, only one inverter is needed, but we will utilize two inverters in series for stability and to produce a cleaner square wave.

- Feedback Resistor and Capacitor: Connect a feedback resistor (R1) between the output of the second inverter (pin 4) and the input of the first inverter (pin 1). Then, connect a capacitor (C1) from the input of the first inverter (pin 1) to the ground. This RC network determines the oscillation frequency.

- Supply Voltage Connection: Ensure that the Vcc pin (pin 14) is connected to a 5V power supply. This voltage level is crucial for the 74HCT04D/AUJ to function correctly within its specified parameters.

- Grounding: The GND pin (pin 7) must be connected to ground. A stable ground connection is essential to avoid oscillation irregularities and to maintain circuit stability.

Design Considerations

When designing circuits with the 74HCT04D/AUJ, several factors must be considered:

- Power Supply Stability: A stable power supply is vital to ensure consistent performance, especially in oscillator circuits where voltage fluctuations can significantly affect the frequency and stability of oscillations.

- Component Selection: The choice of the feedback resistor and capacitor (R1 and C1) is critical. Their values determine the oscillation frequency and must be selected based on the desired output frequency.

- Layout Considerations: The physical layout of the circuit should minimize the length of connections between components to reduce potential signal degradation due to inductance and capacitance in the traces.

- Temperature Effects: The operating temperature can affect the circuit's performance. The 74HCT04D/AUJ is designed to operate within a specified temperature range, but the oscillator frequency might slightly vary with temperature changes.

Incorporating the 74HCT04D/AUJ into a square wave oscillator circuit exemplifies how this versatile chip can be used to generate precise timing signals, an essential function in many digital systems.
