NXP Semiconductors 74HCT04D,653

Part No.:: 74HCT04D,653

Manufacturer:: NXP Semiconductors

Package:: 14-SO

Datasheet:: 74HCT04D,653.pdf

Description:: NOW NEXPERIA 74HCT04D - INVERTER

In Stock:: 3081

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04D,653 Specifications

Packaging:
Bulk
Series:
74HCT
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
19ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT04D,653 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04D,653 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04D,653 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04D,653 information

Views：

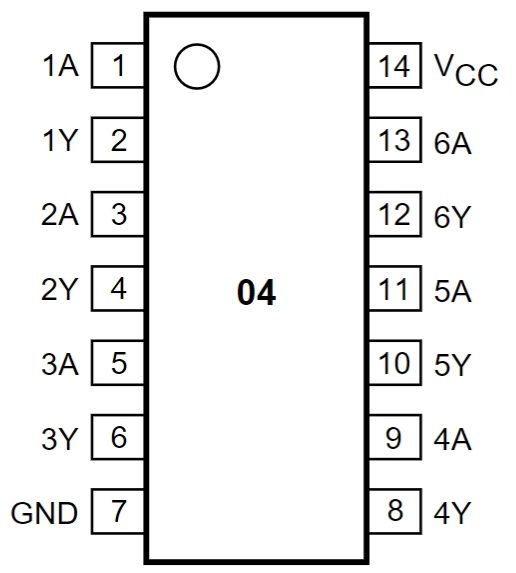

74HCT04D,653 Typical application Circuitry

74HCT04D,653

The 74HCT04D,653 is an integrated circuit from the high-speed CMOS (HCMOS) family, featuring six independent inverters. This device is designed to offer logic INVERT functions with high noise immunity and low power consumption, making it suitable for interfacing with TTL (Transistor-Transistor Logic) levels and for use in a wide variety of digital applications.

Application Scenarios

The 74HCT04D,653 is highly versatile, finding applications in digital electronics for signal inversion, waveform shaping, logic gate construction, and oscillator circuits. Its ability to handle digital signals efficiently makes it an ideal choice for creating precise timing sequences, signal processing, and in systems requiring signal conditioning to mitigate noise.

Parameter Features

- Operating Voltage Range: Typically 4.5V to 5.5V, which is compatible with most digital systems and ensures ease of integration.

- Low Power Consumption: Designed for minimal power usage, an important feature for battery-operated and energy-conscious applications.

- High Noise Immunity: Provides reliable performance in noisy electrical environments, preserving signal integrity.

- TTL Compatibility: Can be interfaced directly with TTL logic levels, facilitating its use in mixed-logic environments.

Specific Application Circuit Design: Square Wave Oscillator

To construct a square wave oscillator using the 74HCT04D,653, follow these detailed instructions focusing on key points.

- Oscillator Foundation: Use one of the inverters in the 74HCT04D,653. Connect the output of this inverter (let's say from pin 2) directly to its own input (pin 1) to form the basic inverting structure.

- Frequency Control Network: Integrate a resistor (R1) between the output of the inverter (pin 2) and the input of another inverter (pin 3). Then, connect a capacitor (C1) from the input of this second inverter (pin 3) to ground. The R1-C1 network controls the oscillation frequency.

- Power Supply Considerations: Attach the Vcc pin (pin 14) to a 5V supply and ensure the GND pin (pin 7) is properly grounded. It's crucial for the 74HCT04D,653 to have a stable and clean power source for optimal performance.

- Output Signal Extraction: The square wave can be taken from the output of the second inverter (pin 4), offering a stable and consistent square wave signal suitable for timing and waveform generation tasks.

Design Considerations

When designing circuits with the 74HCT04D,653, several considerations should be taken into account:

- Stable Power Supply: The power supply must be regulated and free from noise to avoid affecting the performance of the 74HCT04D,653. Utilizing decoupling capacitors near the power supply pins can help.

- Component Selection: The values of R1 and C1 are critical in determining the frequency of the oscillator. These should be chosen based on the desired frequency output, with consideration for the operating characteristics of the 74HCT04D,653.

- Layout and Shielding: To minimize the impact of external noise and interference, careful PCB layout practices should be employed, along with shielding if necessary, especially in environments with high electrical noise.

- Thermal Management: While the 74HCT04D,653 is designed for low power consumption, it's important to consider heat dissipation in designs that use multiple inverters or operate at high frequencies continuously.

Incorporating the 74HCT04D,653 into a square wave oscillator circuit demonstrates the IC's utility in generating timing signals, an essential function in digital electronics for a multitude of applications.
