Nexperia USA Inc. 74HCT04D,652

Part No.:: 74HCT04D,652

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: 74HCT04D,652.pdf

Description:: IC INVERTER 6CH 1-INP 14SO

In Stock:: 2503

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04D,652 Specifications

Packaging:
Bulk,Bulk,Tube
Series:
74HCT
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
19ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT04D,652 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04D,652 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04D,652 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04D,652 information

Views：

74HCT04D,652 Typical application Circuitry

74HCT04D,652

The 74HCT04D,652 is a high-speed CMOS technology six independent inverters. It belongs to the 74HCT series, compatible with TTL logic levels, primarily used for logic level conversion, oscillator construction, signal shaping, and other scenarios.

Application Scenarios

Numerous application situations, including as signal shaping, oscillator construction, logic level conversion, etc., can make use of the 74HCT04D,652. Below, we will detail how to use the 74HCT04D,652 to build a simple RC oscillator.

RC Oscillator Design

An RC oscillator is a circuit that produces oscillating signals by means of a resistor (R) and a capacitor (C). To build an RC oscillator with the 74HCT04D,652, we need to detail the circuit connection.

Inverter Selection

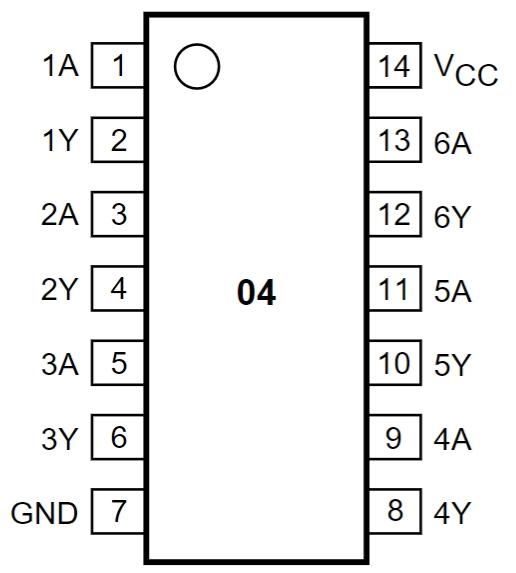

First, select one of the six independent inverters from the 74HCT04D,652. Suppose we use the first inverter, i.e., pin 1 (input) and pin 2 (output).

Feedback Resistor Connection

Connect a resistor (R) from pin 2 (output) to pin 1 (input) to provide feedback.

Capacitor Connection

One end of the capacitor (C) is connected to pin 1 (input), and the other end is grounded. This forms the RC segment of the oscillator.

Power Supply Connection

Pin 14 of the 74HCT04D,652 is connected to Vcc (usually 5V), and pin 7 is grounded, providing the necessary working voltage for the chip.

Output Observation

Finally, the oscillating signal can be observed from pin 2 (output).

Design Considerations

When designing an RC oscillator, several key factors need to be considered:

- Operating Frequency: The resistor R and the capacitor C control the frequency of the RC oscillator. The formula \[f = 1/(2πRC)\] can be used to get the frequency f.

- Stability: The selection of resistance and capacitance should ensure the stable operation of the oscillator, avoiding instability caused by too long or too short charging and discharging times of the capacitor.

- Supply Voltage: Ensure that the supply voltage of the 74HCT04D,652 meets the specification requirements. Too high or too low voltage may damage the chip or affect the performance of the oscillator.

- Load Capacity: To make sure the 74HCT04D,652 can drive the next circuit, take into account the output end's load capacity.

Using the 74HCT04D,652 to construct an RC oscillator is just one of its many applications.It is extensively used in digital circuit design due to its high speed and low power consumption. Understanding and correctly applying the parameters and characteristics of the 74HCT04D,652 is key to successfully implementing the circuit functionality.
