Toshiba Semiconductor and Storage 74HCT04D

Part No.:: 74HCT04D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 14-SOIC

Datasheet:: 74HCT04D.pdf

Description:: IC INVERTER 6CH 1-INP 14SOIC

In Stock:: 1317

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT04D Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HCT
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
16ns @ 5.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT04D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT04D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT04D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT04D information

Views：

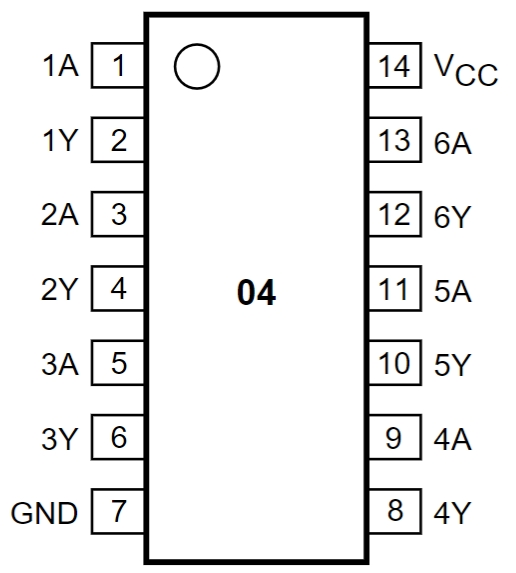

74HCT04D Typical application Circuitry

74HCT04D

The 74HCT04D is a CMOS high-speed device made up of six separate inverters. This IC is designed for use in applications requiring logic inversion, with the added benefit of TTL input level compatibility. It's widely used in digital circuits for signal processing, waveform generation, and logic level conversion due to its fast response times and low power consumption.

Application Scenarios:

One common application of the 74HCT04D is in generating square wave signals from a given input waveform. This can be particularly useful in digital clock generation circuits, where a stable and precise clock signal is crucial for timing and synchronization purposes.

Parameter Features:

The 74HCT04D operates with a supply voltage range of 4.5V to 5.5V, making it compatible with TTL logic levels. It features six independent inverters, allowing for multiple uses within a single package. Its fast propagation delay and low power dissipation make it suitable for high-speed logic inversion applications.

Circuit Connection Details:

- Power Supply Connection: Connect the VCC pin of the 74HCT04D to a 5V power source to ensure it operates within the TTL-compatible voltage range.To give the IC a steady reference for operation, connect the GND pin to the system ground.

- Input Signal Connection: For generating a square wave, connect an input signal to one of the inverter inputs (e.g., Pin 1). This signal could be a sinusoidal waveform or any other shape that requires conversion to a square wave.

- Output Signal Utilization: The output from the corresponding inverter (e.g., Pin 2 for the inverter connected to Pin 1) will be a square wave that is the inverted logic of the input signal. This output can be connected to other digital circuits or devices that require a square wave input.

- Decoupling Capacitor: To reduce power supply noise and ensure steady functioning of the 74HCT04D, it is recommended to install a decoupling capacitor (e.g., 100nF) close to the VCC and GND pins.

Design Considerations:

1. Input Signal Characteristics: Ensure that the input signal's voltage levels are within the 74HCT04D's operating range to prevent damage to the IC and ensure accurate logic inversion.

2. Output Load: Consider the capacitive and resistive load connected to the 74HCT04D's outputs. Excessive load can affect the output signal's quality and the IC's ability to perform logic inversion effectively.

3. Signal Integrity: Pay attention to the PCB layout, especially the routing of the input and output signals, to minimize signal degradation due to noise and interference.

4. Thermal Management: While the 74HCT04D is designed for low power consumption, it's still important to consider thermal management in designs where multiple inverters are used simultaneously under high-frequency conditions.

By integrating the 74HCT04D into your circuit design with these considerations in mind, you can effectively utilize its capabilities for generating square wave signals or performing other logic inversion tasks, enhancing the functionality and reliability of your digital systems.
