ON Semiconductor 74HC86DR2G

Part No.:: 74HC86DR2G

Manufacturer:: ON Semiconductor

Package:: 14-SOIC

Datasheet:: 74HC86DR2G.pdf

Description:: IC GATE XOR 4CH 2-INP 14SOIC

In Stock:: 68679

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC86DR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Obsolete
LogicType:
XOR (Exclusive OR)
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
17ns @ 6V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

74HC86DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC86DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC86DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC86DR2G information

Views：

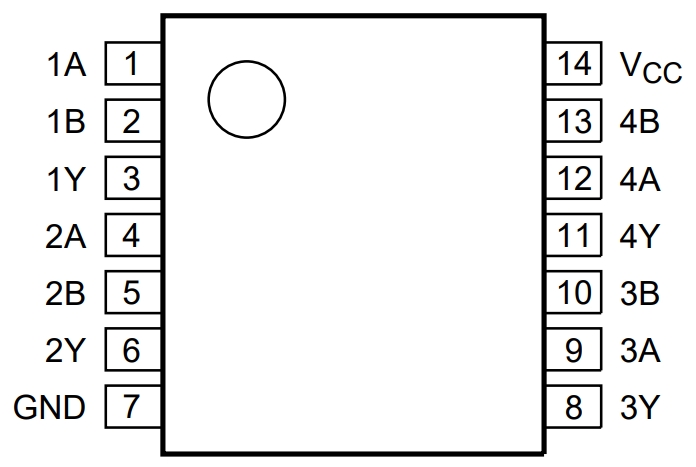

74HC86DR2G Typical application Circuitry

74HC86DR2G

74HC86DR2G is a high-speed CMOS device comprising four independent 2-input exclusive OR (XOR) gates. This chip is used to perform digital logic operations that compare two input signals and output a high signal if they differ or a low signal if they are the same.

Applications of 74HC86DR2G:

- Digital computation and arithmetic

- Data encryption and security

- Signal processing and analysis

- Parity generators and checkers

Parameter Characteristics:

- Supply Voltage Range: 2.0V to 6.0V

- Propagation Delay Time: 7ns (typical)

- Input Capacitance: 3.5pF (typical)

- Operating Temperature Range: -40°C to 125°C

Application Scenario - Digital Arithmetic Circuit:

1. Connect the Power Supply:

- A 5V power source needs to be connected to pin 14, or VCC.

- Ground should be connected to pin 7 (GND).

2. Configure the Inputs:

- The 74HC86DR2G inputs A and B should be connected to pins 1A & 1B, 2A & 2B, 3A & 3B, and 4A & 4B of the chip.

3. Connect the Outputs:

- The 74HC86DR2G outputs 1Y, 2Y, 3Y, and 4Y should be connected to a display or another indicator to visualize the results of the XOR operations.

4. Verification:

- Apply different combinations of inputs and observe the output on the display or indicator. The results should match the XOR logic operation.

Design Considerations:

- Voltage Compatibility:

- Ensure that the input voltages are compatible with the 74HC86DR2G to prevent potential damage to the chip.

- Output Load:

- Consider the load connected to the output pins and make sure it is within the chip's maximum drive capability.

- Noise Suppression:

- Add a decoupling capacitor between the VCC and GND pins close to the chip to filter out any noise from the power supply.

To summarize, 74HC86DR2G is a versatile and essential component in digital electronics, with applications ranging from digital computation to data encryption. When designing a circuit with this chip, it's important to consider voltage compatibility, output load, and noise suppression to ensure optimal performance and reliability.
