NXP Semiconductors 74HC86DB112

Part No.:: 74HC86DB112

Manufacturer:: NXP Semiconductors

Package:: 14-SSOP

Datasheet:: 74HC86DB112.pdf

Description:: IC GATE XOR 4CH 2-INP 14SSOP

In Stock:: 3531

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC86DB112 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
XOR (Exclusive OR)
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
20ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC86DB112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC86DB112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC86DB112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC86DB112 information

Views：

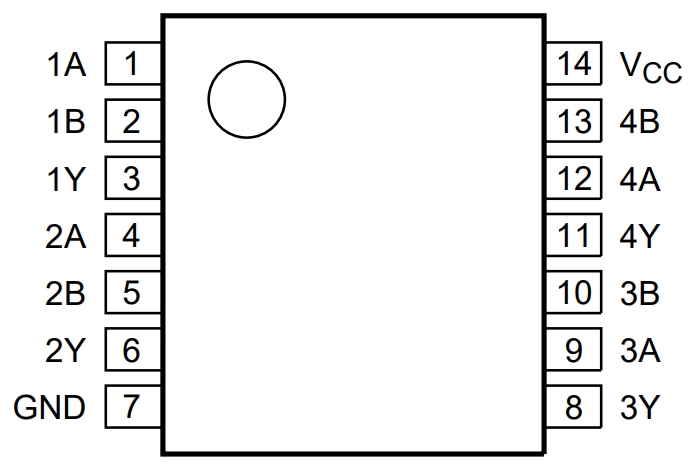

74HC86DB112 Typical application Circuitry

74HC86DB112

The 74HC86DB112 is a quad 2-input XOR gate integrated circuit (IC). Each of its four separate XOR gates has two inputs and one output. Digital logic gates known as XOR gates function when the number of true inputs is odd, producing a true (or 1) output. The 74HC86DB112 is used in a variety of applications, including binary addition, digital signal processing, and data encryption.

Some of the key parameters and characteristics of the 74HC86DB112 include:

- Supply voltage range: 2.0 to 6.0 V

- Low power consumption

- High noise immunity

- Fast switching speeds

Let's take an example of a simple digital circuit that performs binary addition as an application scenario for the 74HC86DB112:

Step 1: Supply voltage connections

Connect the Vcc pin (14) of the 74HC86DB112 to the positive terminal of your power supply and the GND pin (7) to the negative terminal.

Step 2: Connect inputs for addition

For binary addition, connect the inputs of the first XOR gate (pins 1 and 2) to the two bits you want to add. The output (pin 3) will provide the sum of the two bits.

Step 3: Connect the carry-out

If you are adding multiple bits, you will also need to connect the carry-out from the previous stage to the input of the next XOR gate.

In designing circuits with the 74HC86DB112, consider the following:

- Make sure that the supply voltage is within the specified range to prevent damage to the IC.

- Keep an eye out for the output current constraints to avoid damaging the chip with high current flow.

- Consider the timing requirements of your circuit to ensure that the 74HC86DB112 can operate at the required speed.

- To avoid overheating, consider the chip's power usage.
