NXP USA Inc. 74HC86D-Q100118

Part No.:: 74HC86D-Q100118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC86D-Q100118.pdf

Description:: IC GATE XOR 4CH 2-INP 14SO

In Stock:: 3666

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC86D-Q100118 Specifications

Packaging:
Bulk
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Active
LogicType:
XOR (Exclusive OR)
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
20ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC86D-Q100118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC86D-Q100118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC86D-Q100118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC86D-Q100118 information

Views：

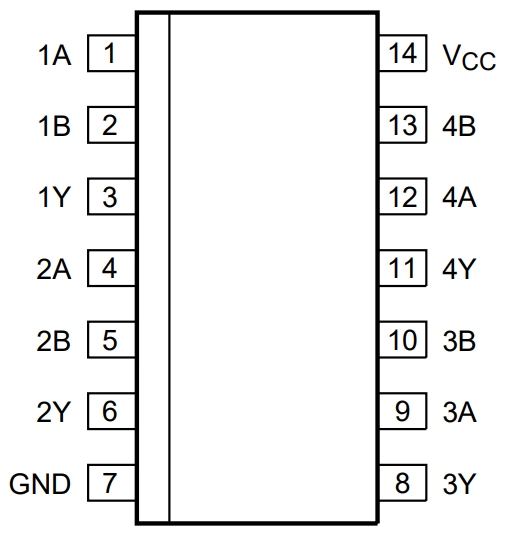

74HC86D-Q100118 Typical application Circuitry

74HC86D-Q100118

74HC86D-Q100118 is a type of XOR gate integrated circuit. There are four distinct XOR gates with two inputs each on a single chip. Digital logic gates known as exclusive OR (XOR) gates provide a true or false output depending on the number of true inputs. An XOR gate outputs true when the number of true inputs is odd.

Applications of 74HC86D-Q100118:

Several digital circuits, including data processing, communication, and control systems, can make use of the 74HC86D-Q100118. It is also widely used in error detection and correction circuits, encryption and decryption circuits, and in the implementation of addition operations in arithmetic circuits.

Parameter characteristics of 74HC86D-Q100118:

- Supply voltage range: 2.0 to 6.0 V

- Minimum high-level input voltage of 2.0 V

- Maximum low-level input voltage of 0.8 V

- Minimum high-level output current of -0.5 mA

- Low-level output current: 4.0 mA minimum

Example application: Parity Generator Circuit using 74HC86D-Q100118:

1.Connection of Inputs:First, connect the inputs of the first XOR gate (pins 1 and 2) to the data lines whose parity needs to be generated.

2.Spiral XOR Gates: Next, link pin 3-the first XOR gate's output-to pin 5-the second XOR gate's input. Attach pin 4 of the second XOR gate, the other input, to the second data line.The third and fourth XOR gates should be implemented in the same manner.

3.Connection for Output: The output of the fourth XOR gate (pin 11) will give the parity of the data lines connected to the inputs. This output can be connected to a display or any other device to show the parity.

4.Power Supply Connection:Finally, attach the GND pin (pin 7) to the ground and the VCC pin (pin 14) to a 5V power source.

The following factors should be taken into mind when designing the circuit:

1. Verify that the supplied voltage for the 74HC86D-Q100118 is within the permitted range.

2. Ensure that the inputs and outputs are connected correctly to prevent any short circuits or malfunctioning of the circuit.

3. Account for the propagation delay of the XOR gates to guarantee accurate timing in the circuit.

4. Take into consideration the power consumption and heat dissipation of the circuit to ensure its reliable operation.
