NXP USA Inc. 74HC86D/AUJ

Part No.:: 74HC86D/AUJ

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC86D/AUJ.pdf

Description:: IC GATE XOR 4CH 2-INP 14SO

In Stock:: 2155

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC86D/AUJ Specifications

Packaging:
Tape & Reel (TR)
Series:
74HC
ProductStatus:
Active
LogicType:
XOR (Exclusive OR)
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
20ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC86D/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC86D/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC86D/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC86D/AUJ information

Views：

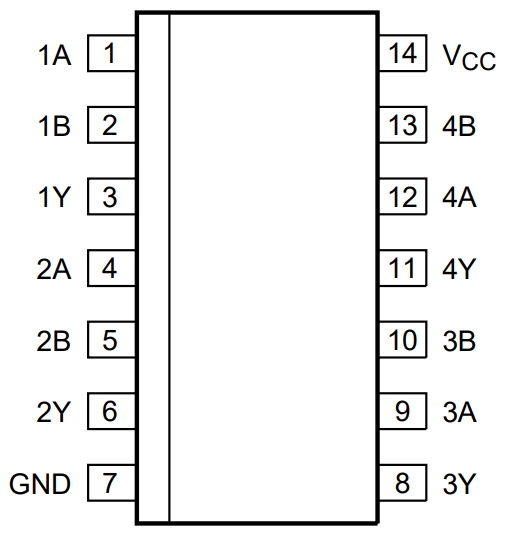

74HC86D/AUJ Typical application Circuitry

74HC86D AUJ

74HC86D/AUJ is a high-speed CMOS device that provides four independent 2-input exclusive OR (XOR) gates. It is utilized mostly in digital circuits and can function with a variety of supply voltages.

Applications of 74HC86D/AUJ:

- Digital arithmetic operations

- Data encoding and decoding

- Parity generation and checking

Parameter Characteristics:

- Supply Voltage Range: 2.0V to 6.0V

- Low Power Consumption

- High Noise Immunity

- TTL-Compatible Input Levels

Application Scenario - Data Encoding:

1. Power Supply Connections:

- Connect 74HC86D/AUJ VCC (pin 14) to a 5V power supply.

- Connect 74HC86D/AUJ GND (pin 7) to the ground.

2. Input Configuration:

- Connect the two digital inputs (A and B) to input pins 1A & 1B, 2A & 2B, 3A & 3B, and 4A & 4B as per requirement.

3. Output Configuration:

- Connect the outputs (1Y, 2Y, 3Y, 4Y) to the input pins of the device used for decoding the encoded data.

4. Testing and Verification:

- Apply the digital inputs and observe the output at the respective Y pins. The output should match the XOR of the two input pins.

Design Considerations:

1. Input Voltage Levels: Ensure that the input voltage levels are compatible with 74HC86D/AUJ to prevent damage.

2. Output Load: Consider the load connected to the output pins and make sure that it does not exceed the chip's maximum drive capability.

3. Interference: Implement proper grounding and shielding to minimize interference from external sources.

To sum up, the 74HC86D/AUJ is a flexible device that may be applied to a range of digital tasks, including data encoding. Proper attention should be given to input and output voltage levels, load conditions, and interference mitigation to ensure reliable operation.
