NXP USA Inc. 74HC86D/AU118

Part No.:: 74HC86D/AU118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC86D/AU118.pdf

Description:: IC GATE XOR 4CH 2-INP 14SO

In Stock:: 19650

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC86D/AU118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
XOR (Exclusive OR)
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
20ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC86D/AU118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC86D/AU118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC86D/AU118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC86D/AU118 information

Views：

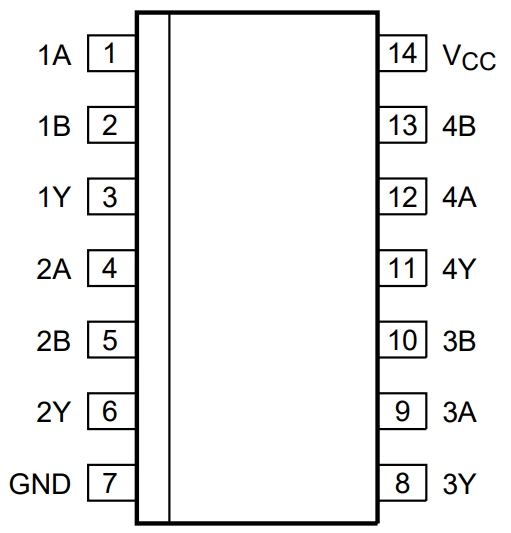

74HC86D/AU118 Typical application Circuitry

74HC86D AU118

The 74HC86D/AU118 is a quad 2-input exclusive OR (XOR) gate integrated circuit (IC). It is made up of four separate XOR gates, each having two inputs and one output, according to this description. Digital logic gates known as XOR gates provide a true or 1 output when the number of true inputs is odd. This chip is used in various applications, including digital signal processing, data encryption, and error detection and correction.

Key characteristics and specifications of the 74HC86D/AU118 include:

- Low power consumption

- High noise immunity

- Supply voltage range: 2.0 to 6.0 V

- Fast switching speeds

One example of an application for the 74HC86D/AU118 is in a simple digital circuit that adds two binary numbers. Here's how you could set up the circuit:

Step 1: Connect the power supply

The Vcc pin (14) of the 74HC86D/AU118 should be connected to the positive terminal of your power supply, and the GND pin (7) should be connected to the negative terminal.

Step 2: Connect the inputs

Connect the inputs of the first XOR gate (pins 1 and 2) to the two bits you want to add. The output (pin 3) will then give the sum of the two bits.

Step 3: Connect the carry-out

If you are adding multiple bits, you will also need to connect the carry-out from the previous stage to the input of the next XOR gate.

When designing circuits with the 74HC86D/AU118, it is important to consider the following:

- Ensure that the supply voltage is within the specified range.

- Take note of the maximum current that can be sourced or sunk by the output pins to avoid damaging the chip.

- Consider the timing requirements of your circuit to ensure that the 74HC86D/AU118 can operate at the required speed.

- Be aware of the chip's power consumption to avoid overheating.
