What is the Additional Feature ?

Name: 74HC74DTR2G
Brand: ON Semiconductor
SKU: 74HC74DTR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 74HC74DTR2G

Part No.:: 74HC74DTR2G

Manufacturer:: ON Semiconductor

Package:: 14-TSSOP

Datasheet:: 74HC74DTR2G.pdf

Description:: IC FF D-TYPE DUAL 1BIT 14TSSOP

In Stock:: 3899

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC74DTR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Obsolete
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
2
NumberofBitsperElement:
1
ClockFrequency:
28 MHz
MaxPropagationDelay@VMaxCL:
17ns @ 6V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
5.2mA, 5.2mA
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Iq):
2 µA
InputCapacitance:
10 pF
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC74DTR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC74DTR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC74DTR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC74DTR2G information

Views：

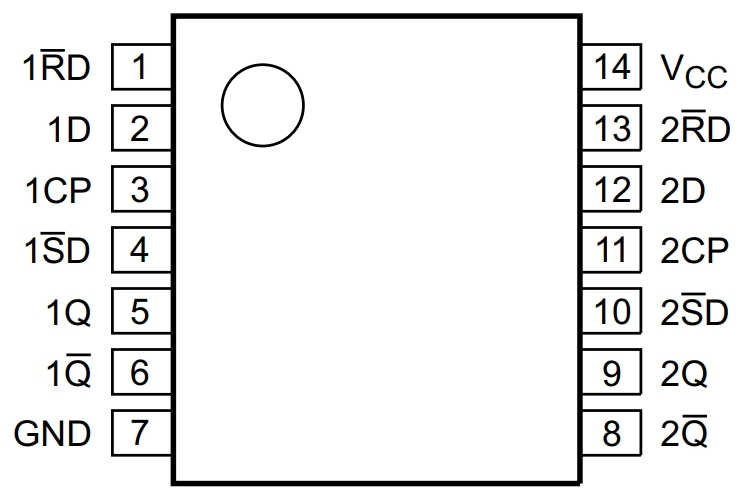

74HC74DTR2G Typical application Circuitry

74HC74DTR2G

The 74HC74DTR2G is a dual positive-edge triggered D-type flip-flop chip with individual data, clock, set, and reset inputs for each flip-flop. This chip is part of the 74HC74 family of digital integrated circuits.

Applications:

- Data storage systems

- Frequency dividers

- Toggle circuits

- Shift registers

Parameter Characteristics:

- Voltage supply range: 2 V to 6 V

- High-speed operation with typical propagation delay of 15 ns at V_CC = 5 V

- Low power consumption

- Two D-type flip-flops per chip

Application Scenario - Frequency Divider:

The 74HC74DTR2G can be utilized to create a frequency divider circuit, dividing the input frequency by two.

Circuit Connection:

1. Power Supply: Connect the Vcc (pin 14) to a 5 V power supply and connect pin 7 to the ground.

2. Input Clock Signal: Attach the clock signal to the first flip-flop's clock input (CP, pin 3).

3. Data Input: Join the first flip-flop's D, pin 2 data input and Q' output (pin 6).

4. Set and Reset Inputs: Connect the set (SD, pin 1) and reset (MR, pin 4) inputs of the first flip-flop to the 5 V power supply to disable them.

5. Output: The Q output (pin 5) of the first flip-flop will now provide the divided frequency.

Design Considerations:

- Stable Power Supply: The power supply should be within the specified voltage range and stable to ensure accurate operation.

- Noise Filtering: Any noise in the clock input should be filtered out to prevent incorrect toggling.

- Proper Grounding: Adequate grounding is necessary to prevent interference in the circuit.

- Signal Integrity: Ensure that the input signal has clean transitions to avoid glitches in the output.

To sum up, the 74HC74DTR2G is a flexible chip that works with a range of digital circuits. When designing a circuit with this chip, it's important to consider the power supply, input signal quality, grounding, and any other additional components that might be needed for the circuit to function correctly.
