Name: 74HC74DR2G
Brand: ON Semiconductor
SKU: 74HC74DR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 74HC74DR2G

Part No.:: 74HC74DR2G

Manufacturer:: ON Semiconductor

Package:: 14-SOIC

Datasheet:: 74HC74DR2G.pdf

Description:: IC FF D-TYPE DUAL 1BIT 14SOIC

In Stock:: 2533

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC74DR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Obsolete
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
2
NumberofBitsperElement:
1
ClockFrequency:
28 MHz
MaxPropagationDelay@VMaxCL:
17ns @ 6V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
5.2mA, 5.2mA
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Iq):
2 µA
InputCapacitance:
10 pF
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC74DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC74DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC74DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC74DR2G information

Views：

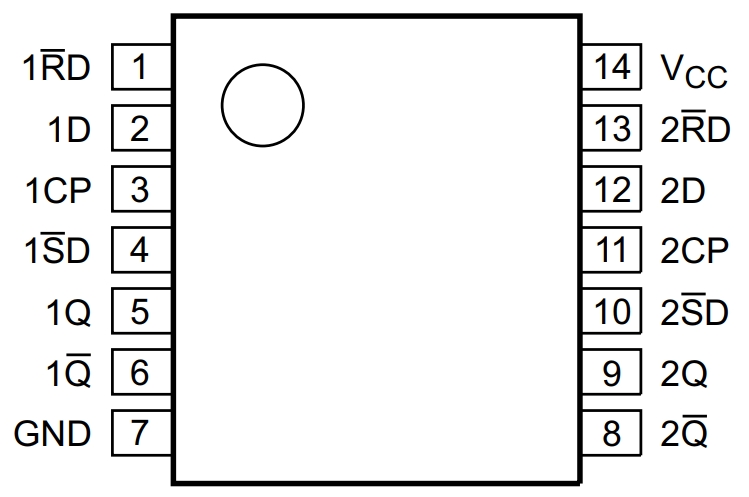

74HC74DR2G Typical application Circuitry

74HC74DR2G

A dual D-type flip-flop with set and reset is the 74HC74DR2G. It is part of the high-speed Si-gate CMOS family and is designed to operate at a voltage range of 2 V to 6 V. The flip-flop edges trigger on the positive-going transition of the clock input, making it useful for various digital applications.

Applications of 74HC74DR2G:

- Data storage

- Frequency division

- Counter circuits

- Shift registers

Application Scenario - Frequency Divider Circuit:

A common application of the 74HC74DR2G is in frequency division circuits. Here's how to set it up:

1. Power Supply Connection: Connect the Vcc (pin 14) to a 5 V power supply, and connect pin 7 (GND) to the ground.

2. Clock Input: Attach the clock signal to the first flip-flop's clock input (CP, pin 3).

3. Data Input: Connect the Q' output (pin 6) of the first flip-flop to the data input (D, pin 2) of the same flip-flop.

4. Set and Reset Inputs: Connect the set (SD, pin 1) and reset (MR, pin 4) inputs of the first flip-flop to the 5 V power supply to disable them.

5. Output: The 74HC74DR2G output frequency at Q (pin 5) of the first flip-flop will now be half the input frequency.

Design Considerations:

- Voltage Level Matching: Ensure that the power supply voltage matches the required operating voltage of the 74HC74DR2G.

- Input Signal Integrity: Verify that the clock input signal is free from noise and has well-defined edges to avoid false triggering.

- Proper Grounding: Adequate grounding is required to prevent circuit interference.

- Component Layout: Place the components in a way that minimizes the length of connecting wires to reduce parasitic capacitance and inductance effects.

In conclusion, the 74HC74DR2G is a versatile dual flip-flop chip suitable for various digital applications, including frequency division. Proper consideration should be given to the power supply, input signal quality, grounding, and component layout to ensure the circuit operates correctly.
