NXP USA Inc. 74HC74D-Q100653

Part No.:: 74HC74D-Q100653

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC74D-Q100653.pdf

Description:: IC FF D-TYPE DUAL 1BIT 14SO

In Stock:: 2704

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC74D-Q100653 Specifications

Packaging:
Bulk
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Active
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
2
NumberofBitsperElement:
1
ClockFrequency:
82 MHz
MaxPropagationDelay@VMaxCL:
37ns @ 6V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
5.2mA, 5.2mA
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Iq):
40 µA
InputCapacitance:
3.5 pF
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC74D-Q100653 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC74D-Q100653 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC74D-Q100653 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC74D-Q100653 information

Views：

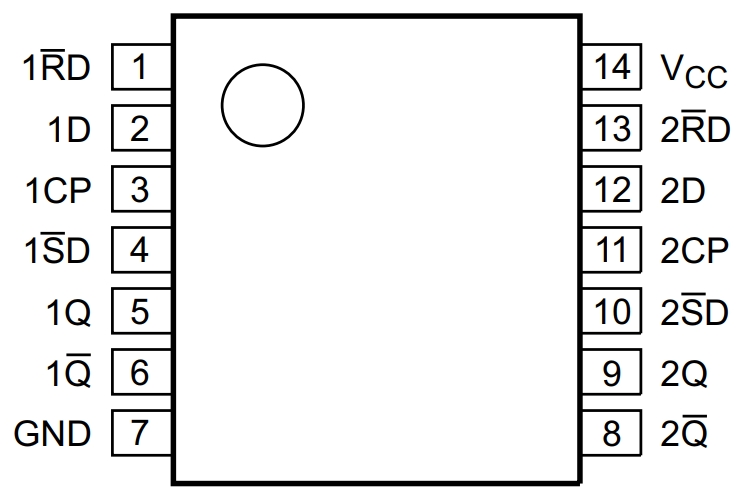

74HC74D-Q100653 Typical application Circuitry

74HC74D-Q100653

74HC74D-Q100653 is a dual D-type flip-flop with set and reset. It is part of the high-speed Si-gate CMOS family and is specifically designed for automotive applications, meeting the stringent quality requirements of the automotive industry.

Applications:

- Data Storage

- Signal Synchronization

- Frequency Division

- Shift Registers and Counters

- Automotive Electronics

Application Scenario - Frequency Divider Circuit:

In a frequency divider circuit using 74HC74D-Q100653, the following steps can be taken:

1. Power Supply Connections:

- Connect VCC (pin 14) to a 5 V power supply.

- Connect GND (pin 7) to the ground.

2. Input Signal:

- Feed the clock signal to be divided to the clock input (CP, pin 3) of the first flip-flop.

3. Data Input:

- Connect the Q' output (pin 6) of the first flip-flop to its data input (D, pin 2) to create a toggle flip-flop configuration.

4. Set and Reset Inputs:

- Connect the set (SD, pin 1) and reset (RD, pin 4) inputs of the first flip-flop to the ground to enable them.

5. Output:

- The 74HC74D-Q100653 frequency-divided output signal can be taken from the Q output (pin 5) of the first flip-flop.

Design Considerations:

- Voltage Levels: Verify that the supplied voltage falls between 74HC74D-Q100653 as indicated.

- Signal Integrity: A clean, noise-free input clock signal is required.

- Proper Grounding: Adequate grounding is necessary to prevent circuit interference.

- Component Placement: To reduce parasitic capacitance and inductance, arrange components so that the length of connecting wires is kept to a minimum.

In conclusion, 74HC74D-Q100653 is a versatile chip that can be utilized in various applications, including frequency division in automotive electronics. When designing a circuit with 74HC74D-Q100653, it is important to consider factors such as supply voltage, signal integrity, grounding, and component placement to ensure optimal performance of the circuit.
