Name: 74HC74D
Brand: Toshiba Semiconductor and Storage
SKU: 74HC74D
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Toshiba Semiconductor and Storage 74HC74D

Part No.:: 74HC74D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 14-SOIC

Datasheet:: 74HC74D.pdf

Description:: IC FF D-TYPE DUAL 1BIT 14SOIC

In Stock:: 3062

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC74D Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
2
NumberofBitsperElement:
1
ClockFrequency:
67 MHz
MaxPropagationDelay@VMaxCL:
26ns @ 6V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
5.2mA, 5.2mA
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Iq):
2 µA
InputCapacitance:
5 pF
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

74HC74D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC74D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC74D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC74D information

Views：

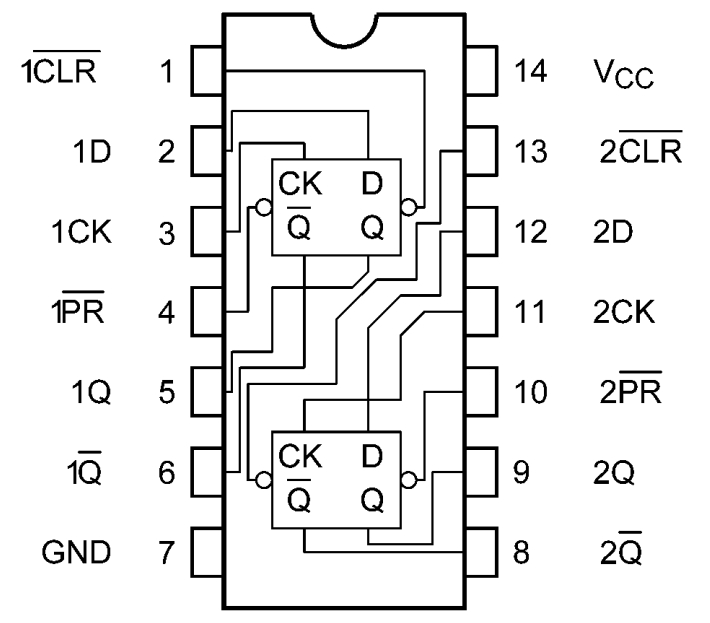

74HC74D Typical application Circuitry

74HC74D

The 74HC74D is essentially a dual D-type flip-flop with set and reset capabilities. Each flip-flop is used to capture the value of a data line.

Applications:

1. Edge Detection: To recognize the transitions from low to high or vice versa.

2. Frequency Dividers: To halve the frequency of a clock signal.

3. Data Storage: Temporarily holding onto data before processing or output.

Technical Traits:

- Dual D-Type Flip-Flops: Two independent flip-flops are present in one package.

- Direct Clear and Set Inputs: Allowing for immediate resetting or setting of the flip-flop state.

- Dedicated Clock Input: A change on this pin can prompt the flip-flop to capture the data line's value.

A Dive into Frequency Division:

Harnessing the 74HC74D as a frequency divider is a common application. Here's a detailed method to design such a circuit:

1. Powering the Chip:

- VCC (Pin 14): This pin is connected to the positive end of your power supply, typically +5V.

- GND (Pin 7): This is connected to the ground or negative end of your power supply.

2. Feeding the Clock Signal:

- CP (Pin 3 or Pin 11): Attach your input clock signal here. Every time this signal transitions from low to high, the flip-flop will capture the state of the D input.

3. Setting Data Input:

- D (Pin 2 or Pin 12): For a frequency divider, connect this pin to the Q' (inverted output) of the same flip-flop.

4. Extracting the Output:

- Q (Pin 5 or Pin 9): This will give you an output signal that's half the frequency of your input clock signal.

5. Reset and Set:

- SD (Pin 1 or Pin 13) and RD (Pin 4 or Pin 10): For typical frequency division, connect these to the high voltage level (e.g., +5V) to disable the reset and set functions.

Design Considerations:

- Debouncing: If using switches to control inputs, ensure that there's no switch bounce which can cause erratic behavior.

- Clock Signal Integrity: Maintain a clean clock signal to prevent false triggering or missed transitions.

- Input Capacitance: Keep in mind that long leads or connections can add capacitance, potentially affecting timing.

- Power Noise: Decoupling capacitors close to the VCC and GND pins can help stabilize the chip against voltage fluctuations.

In sum, the 74HC74D is a chip that is indispensable in the world of digital logic design. With its straightforward yet versatile functionality, it's a mainstay in many electronic projects.
