Name: 74HC541DTR2G
Brand: ON Semiconductor
SKU: 74HC541DTR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 74HC541DTR2G

Part No.:: 74HC541DTR2G

Manufacturer:: ON Semiconductor

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:

Description:: IC BUFFER NON-INVERT 6V 20TSSOP

In Stock:: 5000

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC541DTR2G Specifications

Package/Case:
20-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
74HC
ProductStatus:
Obsolete
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC541DTR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC541DTR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC541DTR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC541DTR2G information

Views：

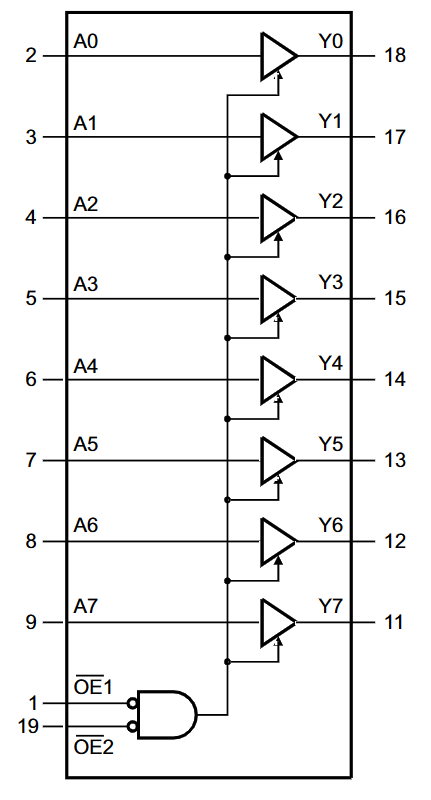

74HC541DTR2G Typical application Circuitry

74HC541DTR2G

The 74HC541DTR2G is a member of the high-speed CMOS family, specifically designed as an octal buffer and line driver with tri-state outputs. This component is optimized for high-speed interfacing and is capable of operating with low power consumption, making it an ideal choice for interfacing between different voltage domains or driving heavy loads without compromising signal integrity. The unique feature of tri-state outputs enables the device to be used in bus systems where multiple devices can connect to a common line without interference, provided they are not enabled simultaneously.

1. Voltage Supply Connection: For the 74HC541DTR2G, the power supply connections are crucial for its operation. The Vcc pin should be connected to a positive supply voltage, which is typically around +5V, aligning with the device's specifications. However, it is imperative to confirm the allowable voltage range from the datasheet to avoid potential damage. Connecting the GND pin to the circuit's ground establishes a common reference point for all signals and power connections within the system.

2. Input Signals: The device boasts eight input pins, labeled from A1 to A8. These pins are designed to receive the signals that require buffering. Whether these signals originate from another section of your circuit, such as a microcontroller or various sensors, it is important to ensure that they are correctly connected to these input pins for the device to function as intended.

3. Output Enable Mechanism: The 74HC541DTR2G incorporates an Output Enable (OE) feature, accessible via the OE pin. This pin is active low, which means connecting it to the ground (GND) activates the outputs. Conversely, to place the outputs in the high impedance (Hi-Z) state, the OE pin should be driven to a high logic level. This functionality is pivotal when using multiple 74HC541DTR2G devices on the same output lines, as it prevents signal interference by ensuring only the desired device is active at any given time.

4. Output Configuration: Corresponding to each input pin, there are eight output pins (Y1 to Y8) that reflect the state of their respective inputs when the OE pin is in the active state. The outputs are non-inverting, meaning the logic level present at any input will be directly mirrored at the corresponding output. This straightforward relationship simplifies the design of circuits where signal integrity is paramount.

5. Stabilization Techniques: Implementing a decoupling capacitor is a recommended practice to ensure the 74HC541DTR2G operates reliably. A capacitor value of approximately 100nF, placed between the Vcc and GND pins and positioned as close to the device as possible, will help filter out noise and mitigate transient voltage spikes. This capacitor acts as a local energy reservoir for the IC, contributing to a stable power supply under dynamic load conditions.

In conclusion, the 74HC541DTR2G is a versatile component that serves a critical function in modern electronic designs, especially where signal buffering and integrity are concerned. When integrating this IC into a project, adhering to the guidance provided in the datasheet is paramount for achieving optimal performance. This includes careful attention to power supply requirements, input and output configurations, and the strategic use of decoupling capacitors. By following these detailed connection methods and considering the unique features of the 74HC541DTR2G, designers can leverage its capabilities to enhance the robustness and reliability of their electronic systems.

74HC541DTR2G FAQ

1. How to order 74HC541DTR2G on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that 74HC541DTR2G is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the 74HC541DTR2G. All suppliers must pass our qualification reviews before they can publish their products including 74HC541DTR2G on icwhale.com; we pay more attention to the channels and quality of 74HC541DTR2G products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the 74HC541DTR2G price and inventory displayed accurate?

The price and inventory of 74HC541DTR2G fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of 74HC541DTR2G?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 74HC541DTR2G we delivered, we will accept the replacement or return of the 74HC541DTR2G only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of 74HC541DTR2G.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
