What is the Additional Feature ?

Name: 74HC541DB,118
Brand: NXP USA Inc.
SKU: 74HC541DB,118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. 74HC541DB,118

Part No.:: 74HC541DB,118

Manufacturer:: NXP USA Inc.

Package:: 20-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HC541DB,118.pdf

Description:: IC BUFFER NON-INVERT 6V 20SSOP

In Stock:: 9746

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC541DB,118 Specifications

Package/Case:
20-SSOP (0.209, 5.30mm Width)
Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC541DB,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC541DB,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC541DB,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC541DB,118 information

Views：

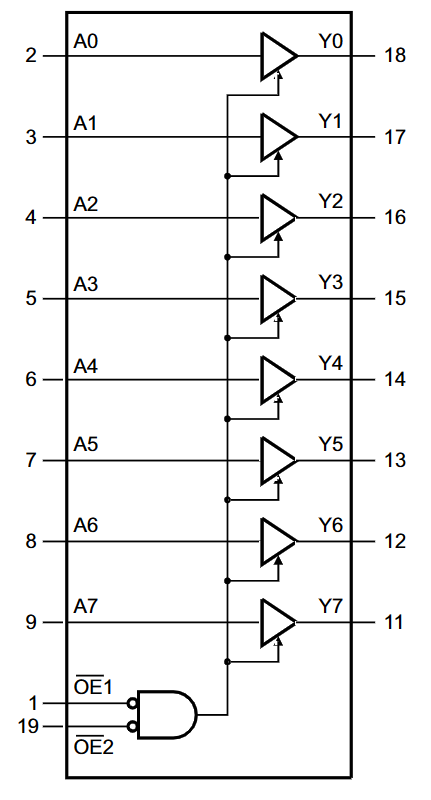

74HC541DB,118 Typical application Circuitry

74HC541DB,118

The 74HC541DB,118 is part of a high-speed CMOS family, known for its octal non-inverting buffer/line driver capabilities with three-state outputs, designed to enhance the drive capacity of data lines and enable the integration of different system components without interference. This device is instrumental in systems that require the distribution and direction of data flow with minimal signal degradation, ensuring robust and reliable communication between various parts of a system.

1. Voltage Supply Configuration: The 74HC541DB,118 necessitates a connection to a power source at pin 20 (VCC) and a grounding point at pin 10 (GND). Typically operating at +5V, this device mandates a stable power supply within its operating voltage range to function correctly. Ensuring the power supply's stability is paramount for the 74HC541DB,118's reliable operation.

2. Input Integration: This device boasts eight input terminals labeled 1A through 8A (located at pins 2, 4, 6, 8, 11, 13, 15, and 17), which should be interfaced with the output signals from the preceding circuit stage. For instances where not all inputs are utilized, it is recommended to connect the dormant inputs to either the VCC or GND via a resistor to stabilize their state, preventing unpredictable behavior.

3. Output Configuration: The 74HC541DB,118 facilitates eight outputs designated as 1Y through 8Y (found at pins 18, 16, 14, 12, 9, 7, 5, and 3). These outputs can be connected to subsequent stages in your circuit. Given their three-state nature, these outputs can exhibit high, low, or high-impedance states, with the latter being essential for creating a bus system by amalgamating multiple outputs.

4. Managing Output Enable (OE) Features: The state of the outputs is managed by two Output Enable controls, OE1 and OE2, situated at pins 1 and 19. Activating the outputs necessitates grounding both OE1 and OE2, resulting in the outputs mirroring the input states. Conversely, setting OE1 and/or OE2 to VCC disables the outputs, transitioning them to a high-impedance state. This functionality is crucial for systems employing bus configurations.

5. Incorporation of a Decoupling Capacitor: To mitigate power supply noise, the introduction of a decoupling capacitor, ideally 0.1 µF, between the VCC and GND pins proximal to the 74HC541DB,118 is recommended. This capacitor plays a vital role in filtering out noise, promoting the stable operation of the device.

6. Circuit Layout Guidelines: For optimal performance, especially in high-speed applications, it is advisable to minimize the length of traces connecting to and emanating from the 74HC541DB,118. Short traces are essential to lessen the impact of parasitic capacitance and inductance, ensuring the integrity of the signals.

In conclusion, integrating the 74HC541DB,118 into a circuit demands careful consideration of each pin's role, adherence to the suggested power supply guidelines, and strategic layout planning to exploit its full potential as a buffer/line driver. Consultation of the device's datasheet is crucial to align with the absolute maximum ratings and recommended operational conditions, which will significantly influence the circuit's overall performance and reliability.
