Nexperia USA Inc. 74HC541D-Q100J

Part No.:: 74HC541D-Q100J

Manufacturer:: Nexperia USA Inc.

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: 74HC541D-Q100J.pdf

Description:: IC BUFFER NON-INVERT 6V 20SO

In Stock:: 2346

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC541D-Q100J Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC541D-Q100J this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC541D-Q100J price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC541D-Q100J to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC541D-Q100J information

Views：

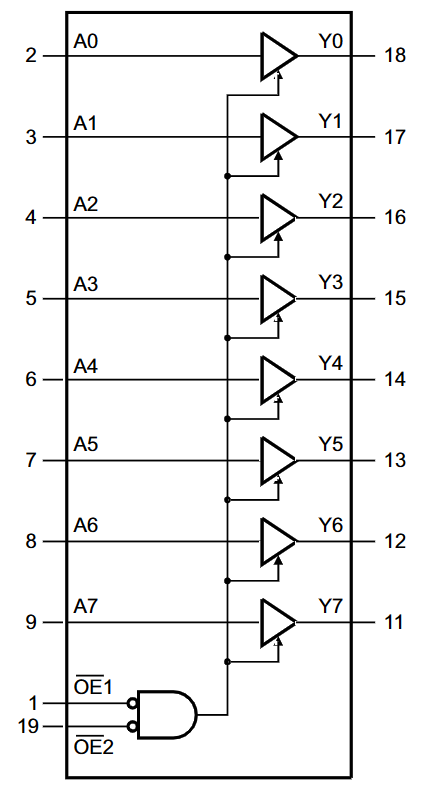

74HC541D-Q100J Typical application Circuitry

74HC541D-Q100J

The 74HC541D-Q100J belongs to a series celebrated for its integration of high-speed CMOS technology, embodying the archetype of octal non-inverting buffer/line drivers with the added functionality of tri-state outputs. This device is specially engineered to enhance the drive strength of data pathways, thereby ensuring the seamless integration of varied system modules with a commitment to maintaining signal integrity. Its utility is paramount in designs that necessitate refined control over data flow, promoting unimpeded and reliable communication among the diverse components of a system.

1. Power Supply and Grounding Essentials: To operationalize the 74HC541D-Q100J, it necessitates a connection to a power source at pin 20 (VCC) and establishes a grounding point at pin 10 (GND). It is designed to operate optimally at a standard voltage of +5V, highlighting the necessity for a power supply that meticulously adheres to this specified voltage range to ensure flawless functionality. The importance of maintaining a stable power supply is critical for the 74HC541D-Q100J's consistent and dependable operation.

2. Input Configuration Scheme: The 74HC541D-Q100J is outfitted with eight input terminals, denoted as 1A through 8A, strategically placed at pins 2, 4, 6, 8, 11, 13, 15, and 17. These inputs are intended for a straightforward interface with the output signals emanating from the previous circuit stages. In the event that certain inputs are not in use, it is advisable to secure these dormant inputs to VCC or GND via a resistor, ensuring their stability and averting any potential for erratic device performance.

3. Output Configuration Detailing: This device offers eight outputs, labelled as 1Y through 8Y, positioned at pins 18, 16, 14, 12, 9, 7, 5, and 3. These outputs are tailored for direct connection to the following circuit stages, with their tri-state capability enabling them to exhibit high, low, or high-impedance states. The latter state is crucial for the engineering of bus systems, allowing for the integration of multiple outputs.

4. Controlling Output Enable (OE) Mechanisms: The state of the outputs is precisely controlled by two Output Enable (OE) mechanisms, OE1 and OE2, located at pins 1 and 19. The activation of the outputs, to accurately reflect the input states, requires the grounding of both OE1 and OE2. Conversely, setting OE1 and/or OE2 to VCC deactivates the outputs, switching them to a high-impedance state. This functionality is vital for the effective implementation of bus systems.

5. Implementation of a Decoupling Capacitor: To mitigate the effects of power supply noise, the introduction of a decoupling capacitor, ideally with a 0.1 µF rating, between the VCC and GND pins in close proximity to the 74HC541D-Q100J, is recommended. This capacitor plays a pivotal role in filtering out noise, significantly contributing to the stable operation of the device.

6. Circuit Layout Protocols: For the optimal realization of performance, especially in high-speed operational scenarios, it is imperative to ensure that the length of traces connecting to and diverging from the 74HC541D-Q100J is kept minimal. This measure is essential to minimize the impact of parasitic capacitance and inductance, thus preserving the integrity of signal transmission.

Incorporating the 74HC541D-Q100J into an electronic circuit demands a deep understanding of the functional role of each pin, stringent adherence to the power supply specifications, and a meticulous approach to circuit layout to fully leverage the device's buffer/line driver capabilities. It is crucial to consult the datasheet for the 74HC541D-Q100J to comply with its absolute maximum ratings and recommended operating conditions, which significantly shape the circuit's performance and durability.
