Nexperia USA Inc. 74HC4052PW-Q100,11

Part No.:: 74HC4052PW-Q100,11

Manufacturer:: Nexperia USA Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: 74HC4052PW-Q100,11.pdf

Description:: IC MUX/DEMUX DUAL 4CH 16TSSOP

In Stock:: 3775

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC4052PW-Q100,11 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
SwitchCircuit:
SP4T
Multiplexer/DemultiplexerCircuit:
4:1
NumberofCircuits:
2
On-StateResistance(Max):
150Ohm
Channel-to-ChannelMatching(ΔRon):
6Ohm
Voltage-SupplySingle(V+):
2V ~ 10V
Voltage-SupplyDual(V±):
±1.5V ~ 5V
SwitchTime(TonToff)(Max):
58ns, 48ns
-3dbBandwidth:
180MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
3.5pF
Current-Leakage(IS(off))(Max):
2µA
Crosstalk:
-60dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC4052PW-Q100,11 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC4052PW-Q100,11 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC4052PW-Q100,11 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC4052PW-Q100,11 information

Views：

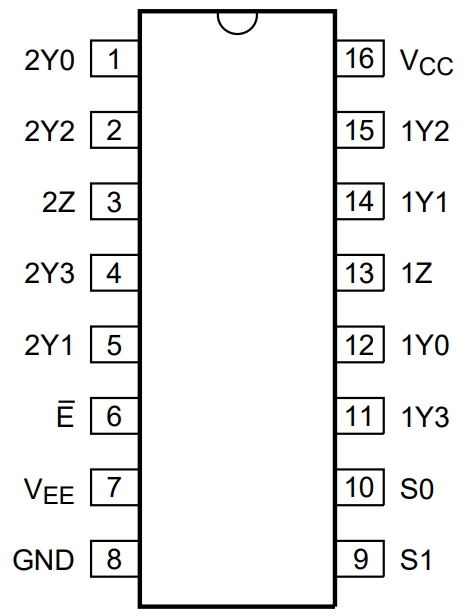

74HC4052PW-Q100,11 Typical application Circuitry

74HC4052PW-Q100,11

The 74HC4052PW-Q100,11 is a dual 4-channel analog multiplexer/demultiplexer chip. This chip can be used to route analog or digital signals, making it highly versatile in various electronic applications.

Application Scenarios:

1. Audio and video signal routing

2. Data acquisition systems

3. Connecting multiple sensors to a single microcontroller pin

Parameter Features:

1. 2V to 6V operating voltage range

2. Low ON resistance of approximately 70 ohms

3. High noise immunity

Circuit Example:

We'll use a data acquisition system as an example, where we have to link a number of sensors to a single microcontroller pin. Here is how you can connect the 74HC4052PW-Q100,11 in the circuit:

1. Power Connections:

- Connect the microcontroller's 5V supply to the VCC pin (Pin 16).

- Connect the GND pin (Pin 8) to the microcontroller's ground.

2. Sensor Connections:

- Connect the outputs of four different sensors to Pins 15, 14, 1, and 2 of the 74HC4052PW-Q100,11.

3. Microcontroller Connection:

- Connect Pin 3 (Y0) or Pin 4 (Y1) to a microcontroller's analog input pin.

4. Control Signals:

- Connect Pins 10 (S0) and 11 (S1) to two digital pins on the microcontroller. These pins will be used to select which sensor's output should be read by the microcontroller.

5. Enable Input:

- Connect the microcontroller's Pin 6 (E) to a digital pin. This pin should be set low to enable the multiplexer.

Design Considerations:

1. Check the voltage range of the sensors to ensure it is within the microcontroller's acceptable input range.

2. Consider the impedance of the microcontroller's input pin to prevent loading effects.

3. Add pull-up or pull-down resistors if the sensors have open-collector or open-drain outputs.

4. Ensure that the multiplexer's operating voltage range matches that of the microcontroller.

In summary, the 74HC4052PW-Q100,11 is a versatile chip that can be used in various applications to simplify circuit designs and connect multiple input sources to a single microcontroller pin. You can design an effective circuit by being aware of the chip's specifications and taking into account the demands of your application.
