What is the Additional Feature ?

Name: 74HC4052PW/AUJ
Brand: NXP USA Inc.
SKU: 74HC4052PW/AUJ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. 74HC4052PW/AUJ

Part No.:: 74HC4052PW/AUJ

Manufacturer:: NXP USA Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: 74HC4052PW/AUJ.pdf

Description:: IC MUX/DEMUX DUAL 4X1 16TSSOP

In Stock:: 3674

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC4052PW/AUJ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
SwitchCircuit:
SP4T
Multiplexer/DemultiplexerCircuit:
4:1
NumberofCircuits:
2
On-StateResistance(Max):
150Ohm
Channel-to-ChannelMatching(ΔRon):
6Ohm
Voltage-SupplySingle(V+):
2V ~ 10V
Voltage-SupplyDual(V±):
±1.5V ~ 5V
SwitchTime(TonToff)(Max):
58ns, 48ns
-3dbBandwidth:
180MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
3.5pF
Current-Leakage(IS(off))(Max):
2µA
Crosstalk:
-60dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC4052PW/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC4052PW/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC4052PW/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC4052PW/AUJ information

Views：

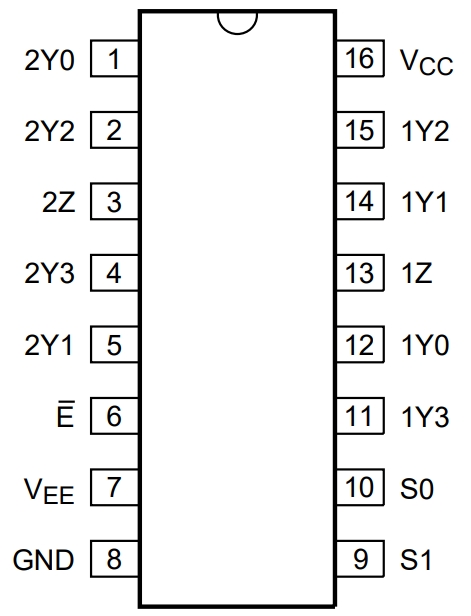

74HC4052PW/AUJ Typical application Circuitry

74HC4052PW AUJ

74HC4052PW/AUJ is a dual 4-channel analog multiplexer/demultiplexer with common enable input. It's part of the high-speed Si-gate CMOS family and is used for routing analog and digital signals in electronic systems.

Application Scenarios:

- Signal routing in audio and video equipment

- Data acquisition systems

- Connecting multiple sensors to a single microcontroller pin

For an application scenario, consider a situation where you want to connect multiple sensors to a single microcontroller pin using 74HC4052PW/AUJ.

Circuit Design:

1. Power Supply:

- Connect Pin 16 (VCC) to the microcontroller's VCC.

- Connect Pin 8 (GND) to the microcontroller's GND.

2. Sensor Inputs:

- Connect the outputs of four different sensors to Pins 15, 14, 1, and 2 of the 74HC4052PW/AUJ.

3. Microcontroller Connection:

- Connect Pin 3 (Y0) or Pin 4 (Y1) to an analog input pin of the microcontroller.

4. Control Signal Connections:

- Connect Pins 10 (S0) and 11 (S1) to two digital pins of the microcontroller. These pins will be used to select which sensor's output is to be read.

5. Enable Input:

- Connect Pin 6 (E) to a digital pin of the microcontroller. The multiplexer will be enabled when this pin is set to low.

Design Considerations:

- Check that the sensors' output voltage range is within the microcontroller's acceptable input voltage range.

- Consider the impedance of the microcontroller's analog input to prevent loading effects.

- Ensure to add pull-up or pull-down resistors if the sensors have open-collector or open-drain outputs.

In conclusion, the 74HC4052PW/AUJ is a versatile chip that can be used to simplify circuit designs where multiple sensors need to be connected to a single microcontroller pin. By understanding and considering the chip's parameters and the specific requirements of your circuit, you can ensure a successful and efficient design.
