What is the Additional Feature ?

Name: 74HC4052D
Brand: Toshiba Semiconductor and Storage
SKU: 74HC4052D
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Toshiba Semiconductor and Storage 74HC4052D

Part No.:: 74HC4052D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: 74HC4052D.pdf

Description:: IC MUX 2 X 4:1 4 OHM 16SOIC

In Stock:: 3943

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC4052D Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SP4T
Multiplexer/DemultiplexerCircuit:
4:1
NumberofCircuits:
2
On-StateResistance(Max):
130Ohm
Channel-to-ChannelMatching(ΔRon):
4Ohm
Voltage-SupplySingle(V+):
2V ~ 6V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
34ns, 32ns
-3dbBandwidth:
-
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
10pF
Current-Leakage(IS(off))(Max):
1µA
Crosstalk:
-50dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

74HC4052D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC4052D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC4052D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC4052D information

Views：

74HC4052D Typical application Circuitry

When you dive into the digital electronics realm, the 74HC4052D stands out as an exceptional player. This powerhouse is a dual 4-channel analog multiplexer/demultiplexer. In essence, it functions as two 4-way switches controlled by digital signals.

Features of 74HC4052D:

- Channels: It offers two sets of 4 analog channels.

- Control Inputs: Two digital select inputs (S0, S1) determine the switching.

- High-speed Switching: Adapted for swift switching between input channels.

- Operating Voltage: Typically ranges from 2V to 10V.

Application Scenarios:

- Dual Signal Routing: Suitable for designs that need to send or receive two signals simultaneously to or from one of four destinations/sources.

- Data Acquisition Systems: Reads from multiple sensors using limited Analog-to-Digital Converters (ADC).

- Communication Systems: Effective in switching between communication channels.

Application: Dual Audio Signal Routing:

Imagine you're creating an audio device that needs to route two audio signals (like left and right channels) to one of four different outputs. The 74HC4052D is your trusted partner here.

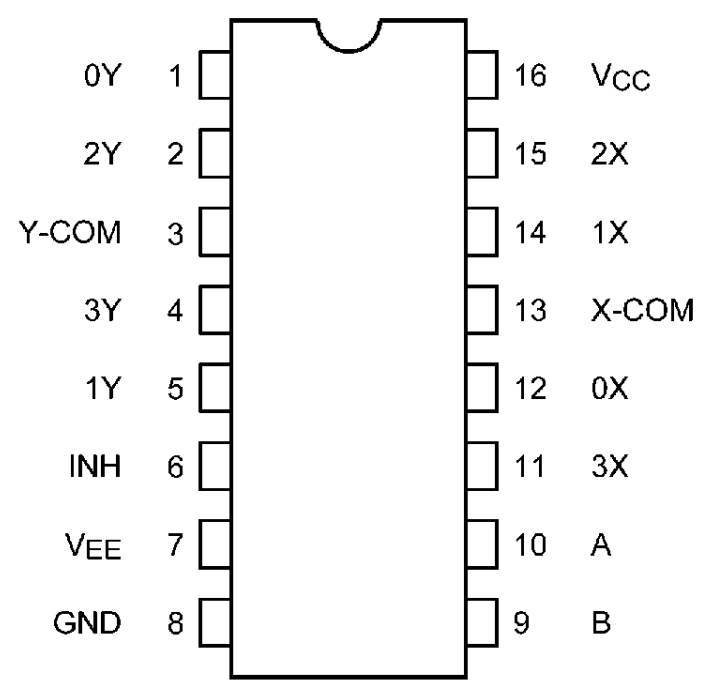

1. Power Connections:

- VCC (Pin 16): This pin requires connection to your power source, typically +5V.

- VEE (Pin 7): Connect this to the negative voltage supply or ground for unipolar signals.

- GND (Pin 8): A pivotal pin, this must be grounded.

2. Setting Up Audio Inputs:

- X0-X3 (Pins 12, 13, 14, 15): Connect these to the first audio signal's possible inputs.

- Y0-Y3 (Pins 1, 5, 2, 3): Connect these to the second audio signal's possible inputs.

3. Routing Outputs:

- X (Pin 4): This is your multiplexed output for the first audio signal.

- Y (Pin 10): This is the multiplexed output for the second audio signal.

4. Select Lines:

- S0, S1 (Pins 9, 11): These control which of the four inputs gets connected to the respective outputs. For instance, for the second input (X1 or Y1), you'd apply a binary '01'.

5. Enable Control:

- E (Pin 6): Pulling this pin HIGH will disconnect both X and Y from their respective inputs, making it an "off" control.

Design Considerations:

- Signal Quality: Ensuring pristine connections for the audio inputs is paramount to maintain audio quality.

- Decoupling Capacitors: A small capacitor, usually 0.1µF, between VCC and GND can help stabilize voltage supply to the 74HC4052D.

- Noise Protection: Given that audio signals are analog, shielding and short traces can significantly reduce interference.

- Drive Capability: Ensure that the driving digital signals have adequate strength to effectively control the 74HC4052D's select lines.

To conclude, the 74HC4052D serves as an invaluable tool in scenarios requiring dual analog input routing. Familiarity with this IC equips you with a wider toolkit for your digital design escapades.
