Toshiba Semiconductor and Storage 74HC4051D

Part No.:: 74HC4051D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: 74HC4051D.pdf

Description:: IC MUX 8:1 4 OHM 16SOIC

In Stock:: 3077

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC4051D Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
130Ohm
Channel-to-ChannelMatching(ΔRon):
4Ohm
Voltage-SupplySingle(V+):
2V ~ 6V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
34ns, 32ns
-3dbBandwidth:
-
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
10pF
Current-Leakage(IS(off))(Max):
1µA
Crosstalk:
-50dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

74HC4051D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC4051D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC4051D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC4051D information

Views：

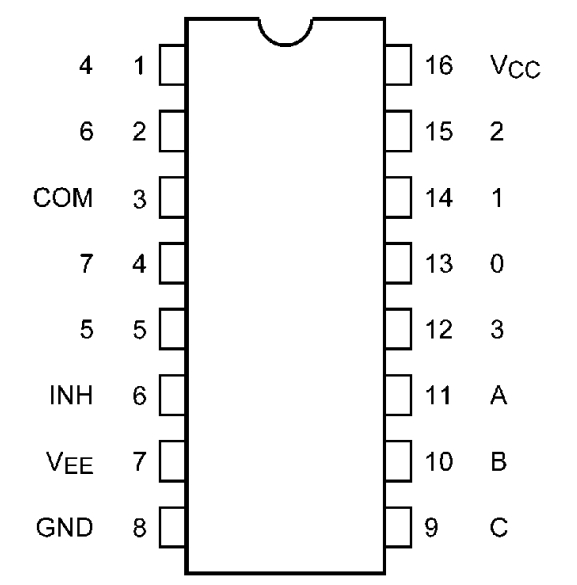

74HC4051D Typical application Circuitry

The 74HC4051D is an integral piece in the tapestry of digital electronics. This remarkable chip is an 8-channel analog multiplexer/demultiplexer, which grants the ability to connect a single analog input/output to any one of eight inputs/outputs. Its functionality is akin to a digitally-controlled eight-way switch.

Features of 74HC4051D:

- Channels: It boasts 8 analog channels.

- Control Inputs: Three digital select inputs (S0, S1, S2) control the switching.

- High-speed Switching: Suitable for rapidly switching between input channels.

- Operating Voltage: Ranges from 2V to 10V.

Application Scenarios:

- Data Acquisition Systems: Facilitates the reading of multiple sensors using a single Analog-to-Digital Converter (ADC).

- Signal Routing: Enables sending a single signal to multiple destinations or selecting one of several incoming signals.

- Analog Signal Processing: Allows dynamic path selection in signal processing chains.

Application: Reading Multiple Sensors:

Suppose you're building a weather station with multiple sensors (like temperature, humidity, light, etc.), but your microcontroller has just one ADC input. Using the 74HC4051D, you can cycle through reading each sensor.

1. Powering the IC:

- VCC (Pin 16): Connect this pin to your power source, usually +5V.

- VEE (Pin 7): Attach to the negative voltage supply if needed (or ground for single-ended signals).

- GND (Pin 8): As always, this pin finds its home linked to the circuit's ground.

2. Setting Up Sensors:

- Y0-Y7 (Pins 13-15, 1-5, 12): Connect each of these to a distinct sensor's analog output.

3. Connecting to the Microcontroller:

- Z (Pin 3): This is your common I/O pin. Wire it directly to the ADC input of your microcontroller.

4. Select Lines:

- S0, S1, S2 (Pins 9-11): These pins determine which of the eight sensors is currently connected to the microcontroller. For instance, to connect to the third sensor (Y2), send a binary '010' using these select lines.

5. Enable/Disable:

- E (Pin 6): When this pin is LOW, the 74HC4051D works as described. If set HIGH, the common I/O (Z) gets disconnected, regardless of the state of the select lines.

Design Considerations:

- Signal Integrity: Ensure high-quality connections for the analog sensors to maintain the integrity of the signal.

- Decoupling Capacitors: As with most ICs, a 0.1µF ceramic capacitor between the VCC and GND pins minimizes voltage fluctuations.

- Noise: Analog signals are susceptible to noise. Use short, shielded traces, especially for the sensor lines.

- Drive Strength: The connected microcontroller must possess enough drive strength to control the 74HC4051D's select lines effectively.

In conclusion, the 74HC4051D is an indispensable tool for projects demanding multiple analog inputs with limited ADC resources. Mastery of this multiplexer/demultiplexer paves the way for efficient and sophisticated designs in the realm of digital electronics.
