Nexperia USA Inc. 74HC32DB,118

Part No.:: 74HC32DB,118

Manufacturer:: Nexperia USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC32DB,118.pdf

Description:: IC GATE OR 4CH 2-INP 14SSOP

In Stock:: 6516

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC32DB,118 Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
74HC
ProductStatus:
Obsolete
LogicType:
OR Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC32DB,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC32DB,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC32DB,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC32DB,118 information

Views：

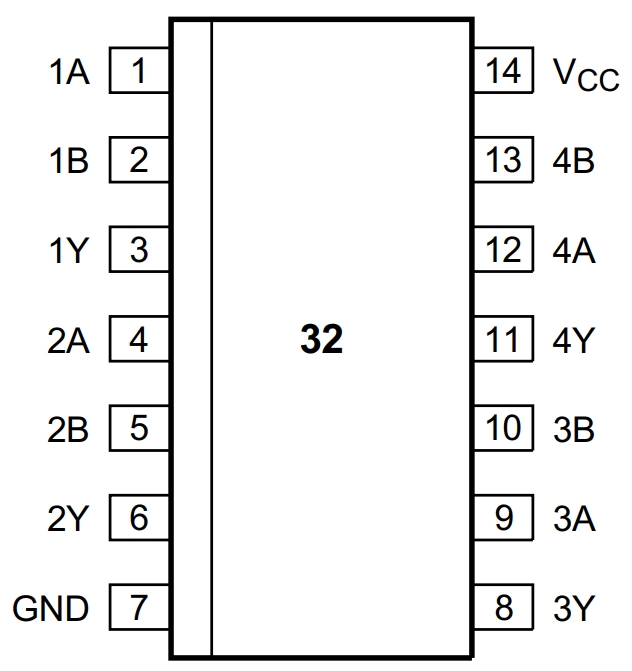

74HC32DB,118 Typical application Circuitry

74HC32DB,118

The 74HC32DB,118 is an integrated circuit (IC) that functions as a quad 2-input OR gate. It belongs to the 74HC family, which is characterized by its high-speed CMOS technology.

Applications for the 74HC32DB,118 are found in various digital systems, such as computers, communication equipment, data processing devices, and any other system that requires a logical OR operation.

Parameters and Characteristics of the 74HC32DB,118 include:

- Supply voltage range from 2.0 V to 6.0 V.

- Minimal power usage.

- High noise resistance.

- output impedance that is symmetrical.

Let's consider a specific example where the 74HC32DB,118 is used to control a light based on two input switches.

Step 1: Connect Power Supply

- Pin 14 (VCC) must be connected to a 5V power source.

- Connect pin 7 (GND) to the ground.

Step 2: Connect Input Switches

- Connect one terminal of switch 1 to pin 1 (A1) and the other terminal to the 5V power supply.

- Connect one terminal of switch 2 to pin 2 (B1) and the other terminal to the 5V power supply.

Step 3: Connect Light

- Connect a light-emitting diode (LED)'s anode to pin 3 (Y1).

- Attach a 220-ohm resistor to the LED's cathode.

- Join the resistor's opposite end to the ground.

When designing circuits with the 74HC32DB,118, the following considerations should be taken into account:

- Verify that the input switches' voltage levels fall within the 74HC32DB,118's permissible operating range.

- To guard against damage, pair the LED with a current-limiting resistor.

- In time-sensitive applications, consider the 74HC32DB,118's propagation delay.

To sum up, the 74HC32DB,118 is a versatile chip that can be employed in a range of digital systems requiring logical OR operations. By following the example circuit and taking into consideration the necessary design factors, this IC can be effectively integrated into your projects.
