NXP USA Inc. 74HC32D/S400118

Part No.:: 74HC32D/S400118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC32D/S400118.pdf

Description:: IC GATE OR 4CH 2-INP 14SO

In Stock:: 5176

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC32D/S400118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
OR Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC32D/S400118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC32D/S400118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC32D/S400118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC32D/S400118 information

Views：

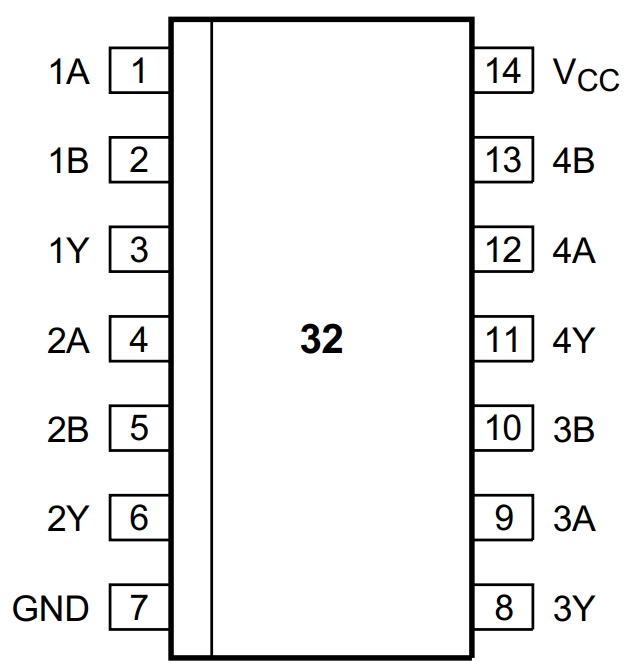

74HC32D/S400118 Typical application Circuitry

74HC32D S400118

The 74HC32D/S400118 is a type of integrated circuit that functions as a quad 2-input OR gate. This chip is a part of the high-speed CMOS family, which is known for its high noise immunity, low power consumption, and wide operating voltage range.

Applications for the 74HC32D/S400118 are vast and include digital computers, communication devices, and other electronic systems that require logical OR operations to process digital signals.

Parameters and characteristics of the 74HC32D/S400118 include:

- Supply voltage range of 2.0 V to 6.0 V

- Low power consumption

- High noise immunity

- Symmetrical output impedance

Let's delve into an application scenario where the 74HC32D/S400118 is used to combine signals from two different sensors to trigger a security camera.

Step 1: Power Supply Connection

- Pin 14 (VCC) must be connected to a 5V power source.

- Connect pin 7 (GND) to ground.

Step 2: Sensor Integration

- Connect the output of sensor 1 to pin 1 (A1).

- Connect the output of sensor 2 to pin 2 (B1).

Step 3: Camera Activation

- Connect pin 3 (Y1) to the input of the security camera's trigger mechanism.

- Connect the output of the camera's trigger mechanism to the camera.

The following parameters must be taken into account when developing circuits for the 74HC32D/S400118:

- Make sure that the voltage levels from the sensors are within the operating range of the 74HC32D/S400118.

- Verify that the security camera's trigger mechanism is compatible with the output from the 74HC32D/S400118.

- Account for any potential propagation delays within the 74HC32D/S400118 that may affect the timing of the camera's activation.

In summary, the 74HC32D/S400118 is a versatile and essential component in digital systems that require logical OR operations. By understanding the chip's characteristics and considering the necessary design considerations, you can effectively integrate this IC into your security systems or other applications.
