NXP USA Inc. 74HC32D/C118

Part No.:: 74HC32D/C118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC32D/C118.pdf

Description:: IC GATE OR 4CH 2-INP 14SO

In Stock:: 8802

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC32D/C118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
OR Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC32D/C118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC32D/C118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC32D/C118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC32D/C118 information

Views：

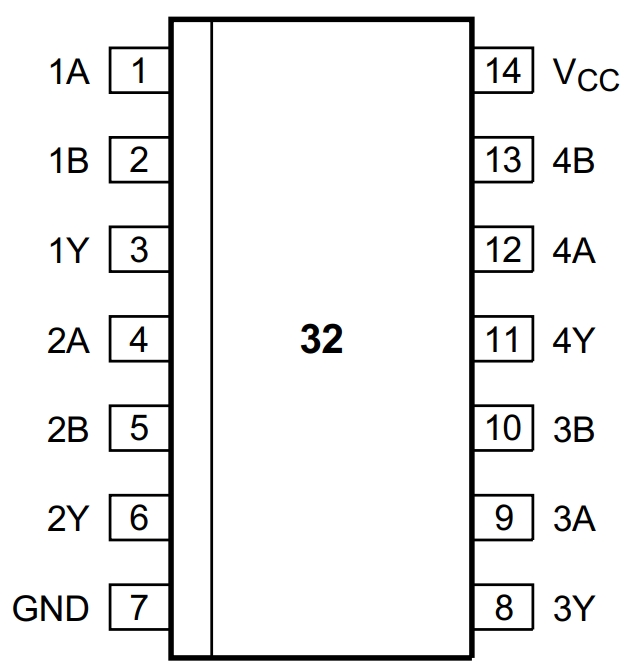

74HC32D/C118 Typical application Circuitry

74HC32D C118

The 74HC32D/C118 is a quad 2-input OR gate chip, functioning to output a high voltage level when either or both of its inputs are high.

Application scenarios for the 74HC32D/C118 include digital computing, signal processing, and a wide array of electronic circuits requiring logical operations.

Parameter characteristics of the 74HC32D/C118 include:

- Operating voltage range of 2 V to 6 V

- Low power dissipation

- High noise immunity level

Let's consider a scenario where the 74HC32D/C118 is used in a home automation system to control a lamp.

Step 1: Connect Power Supply

- Connect the VCC pin (pin 14) to a 5V power source.

- Link pin 7 (GND) to the ground.

Step 2: Connect Sensors to Inputs

- Interface the output of a motion sensor to pin 1 (A1).

- Interface the output of a light sensor to pin 2 (B1).

Step 3: Connect Output to Lamp

- Connect pin 3 (Y1) to the input of a relay controlling the lamp.

- Attach the relay's output to the lamp.

In the design of circuits utilizing the 74HC32D/C118, attention must be given to:

- Assure compatibility of the sensors' voltage levels with the chip's operating range.

- Confirm the relay's input requirements are in line with the chip's output.

- Take into account any potential delays within the chip that could influence the timing of the lamp's operation.

In summary, the 74HC32D/C118 is an integral component in the field of digital electronics, offering reliable and efficient logical operations essential in a myriad of applications. By comprehending its attributes and incorporating the necessary design precautions, you can effectively integrate this IC into your home automation systems or various other applications.
