NXP USA Inc. 74HC32D/AUJ

Part No.:: 74HC32D/AUJ

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC32D/AUJ.pdf

Description:: IC GATE OR 4CH 2-INP 14SO

In Stock:: 2298

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC32D/AUJ Specifications

Packaging:
Tape & Reel (TR)
Series:
74HC
ProductStatus:
Active
LogicType:
OR Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC32D/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC32D/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC32D/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC32D/AUJ information

Views：

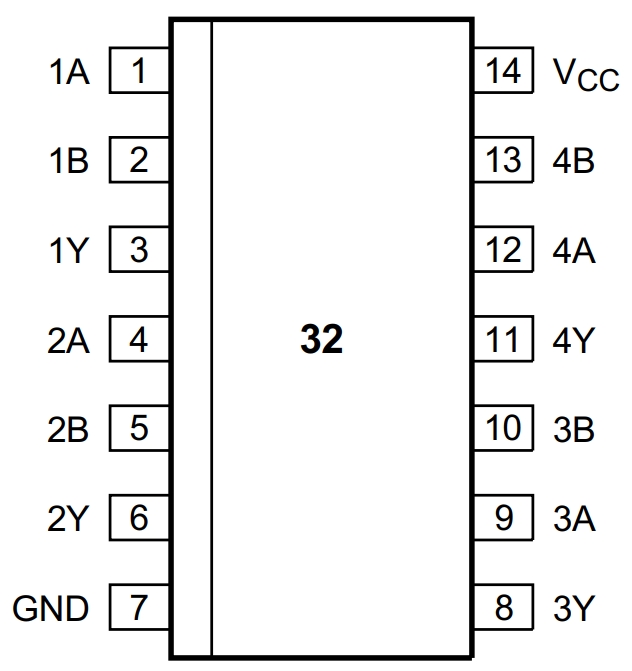

74HC32D/AUJ Typical application Circuitry

74HC32D AUJ

A quad 2-input OR gate with high speed CMOS is called the 74HC32D/AUJ. It has the capacity to perform the logical OR function based on the IEEE/IEC 61967-4 standard.

The chip can be employed in various applications including digital signal processing, microcontroller systems, and other logic-based systems that require the combination of digital signals.

Some parameters and characteristics of the 74HC32D/AUJ are:

- Supply voltage between 2.0 and 6.0 volts

- Low energy usage

- High noise resistance

- Symmetrical output impedance

For this example, we will use the 74HC32D/AUJ to create a simple circuit that lights up an LED based on the input from two sensors.

Step 1: Supply Voltage Connection

- Connect pin 14 (VCC) to the 5V power supply.

- Connect pin 7 (GND) to the ground.

Step 2: Sensor Input Connection

- Connect the output of sensor 1 to pin 1 (A1).

- Connect the output of sensor 2 to pin 2 (B1).

Step 3: LED Output Connection

- Connect pin 3 (Y1) to the anode of the LED.

- Attach a 220-ohm resistor to the LED's cathode.

- Join the resistor's opposite end to the ground.

When designing the circuit, consider the following:

- Ensure that the voltage levels from the sensors are within the operating range of the 74HC32D/AUJ.

- To protect the LED from harm, select a resistor that restricts the current flowing through it.

- Consider the propagation delay of the 74HC32D/AUJ in time-sensitive applications.

In conclusion, the 74HC32D/AUJ is a versatile chip that can be utilized in various applications requiring the combination of digital signals. With the appropriate considerations, it can be effectively integrated into digital systems and circuits.
