Nexperia USA Inc. 74HC245DB,112

Part No.:: 74HC245DB,112

Manufacturer:: Nexperia USA Inc.

Package:: 20-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HC245DB,112.pdf

Description:: IC TXRX NON-INVERT 6V 20SSOP

In Stock:: 2879

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC245DB,112 Specifications

Package/Case:
20-SSOP (0.209, 5.30mm Width)
Packaging:
Tube
Series:
74HC
ProductStatus:
Obsolete
LogicType:
Transceiver, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC245DB,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC245DB,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC245DB,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC245DB,112 information

Views：

74HC245DB,112 Typical application Circuitry

74HC245DB,112

An octal bus transceiver integrated circuit with non-inverting 3-state bus compatible outputs in both the send and receive directions is the 74HC245DB,112. It is used to interface between buses with different voltage levels or to provide bidirectional data transfer between two buses.

Application Scenarios:

One of the common application scenarios of 74HC245DB,112 is in communication between microcontrollers and peripherals with different voltage levels, communication between FPGAs and external devices, as well as data transfer in complex digital systems.

Parameter Features:

The 74HC245DB,112 operates in a voltage range of 2.0 V to 6.0 V, with a typical propagation delay of 8 ns. It also features low power consumption.

Example Application - Interfacing between Microcontroller and FPGA:

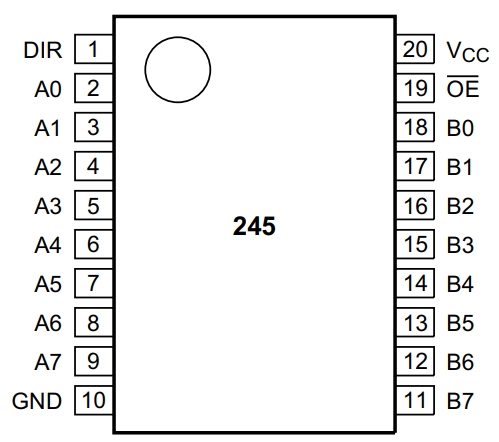

1. Connecting Microcontroller to 74HC245DB,112:

- Connect the data pins of the microcontroller to the A0 to A7 pins of 74HC245DB,112.

2. Connecting 74HC245DB,112 to FPGA:

- Connect the data pins of the FPGA to the B0 to B7 pins of 74HC245DB,112.

3. Setting up the Power Supply:

- Connect pin 20 (VCC) of 74HC245DB,112 to the 5V power supply, and connect pin 10 (GND) to the ground.

4. Direction Control:

- Connect a control line from the microcontroller to pin 1 (DIR) of 74HC245DB,112 to manage data flow direction.

5. Output Enable Configuration:

- Connect an enable line from the microcontroller to pin 19 (OE) of 74HC245DB,112.

Circuit Design Considerations:

1. Voltage Compatibility:

- It is crucial to verify that the voltage levels of the microcontroller, FPGA, and 74HC245DB,112 are compatible.

2. Proper Grounding:

- All components must share a common ground to prevent signal integrity issues.

3. Signal Integrity Maintenance:

- Incorporate necessary pull-up or pull-down resistors to maintain the integrity of signals.

4. Accurate Documentation:

- Maintain comprehensive and accurate documentation with clear labels for ease of troubleshooting and future reference.
