What is the Additional Feature ?

Name: 74HC245D
Brand: Toshiba Semiconductor and Storage
SKU: 74HC245D
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Toshiba Semiconductor and Storage 74HC245D

Part No.:: 74HC245D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: 74HC245D.pdf

Description:: IC TXRX NON-INVERT 6V 20SOIC

In Stock:: 3840

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC245D Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Transceiver, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HC245D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC245D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC245D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC245D information

Views：

74HC245D Typical application Circuitry

74HC245D

The 74HC245D is a versatile chip, well-known in the electronics world. At its heart, it's an octal transceiver featuring non-inverted 3-state outputs. Essentially, it can both send and receive eight bits of data, making it an invaluable component in digital systems.

Features of 74HC245D:

- Octal Bidirectional Bus Interface: The 74HC245D is designed with eight channels for bidirectional data flow, hence 'octal'.

- 3-State Outputs:The output can take on a high, low, or high-impedance state thanks to this functionality. High-impedance effectively renders the chip 'invisible' in a circuit, preventing it from driving the bus.

- Direction Control: A unique feature of the 74HC245D is its ability to control the data flow direction via a single pin.

Where might you find 74HC245D in action?

- Bus Isolation: When multiple devices share a common bus, the 74HC245D can isolate one segment from another.

- Level Translation: It's an intermediary between devices operating at different voltage levels.

- Backplane Data Transmission: In larger systems with multiple boards, the chip can manage data traffic between them.

Application Scenario: Bus Isolation

Imagine a scenario where you have a microcontroller sharing a data bus with several peripherals. To avoid data clashes, you decide to implement the 74HC245D.

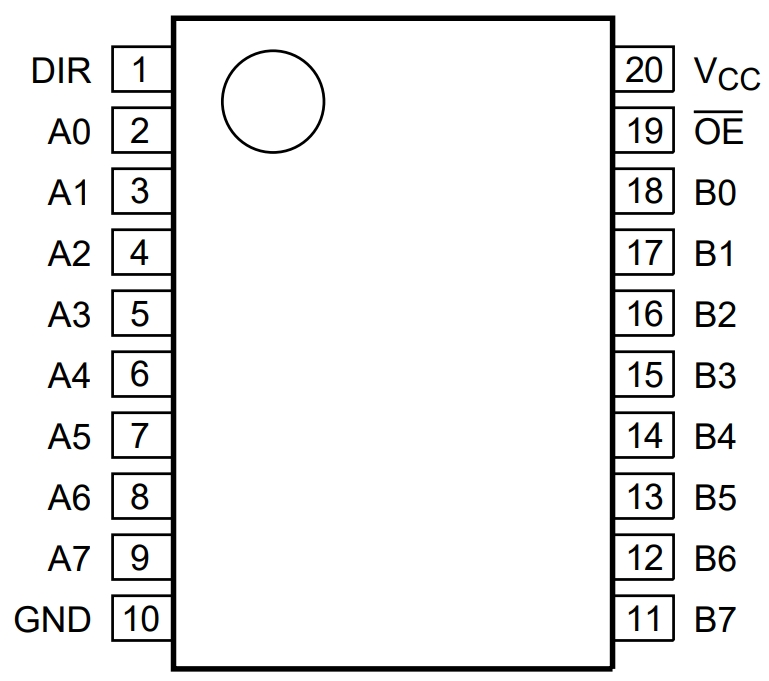

1. Power Supply:

- VCC (Pin 20): The power supply pin is this. Typically, you'd connect this to a +5V source.

- GND (Pin 10): As expected, this pin needs grounding.

2. Data Bus Configuration:

- A0-A7 (Pins 2, 4, 6, 8, 11, 13, 15, 17): These are your data inputs. In our case, they'll be connected to the microcontroller's data pins.

- B0-B7 (Pins 18, 16, 14, 12, 9, 7, 5, 3): The data outputs, which you'll link to the shared data bus.

3. Directional Control:

- DIR (Pin 1): This pin determines data flow. A HIGH signal allows data from A (microcontroller) to B (data bus). Conversely, a LOW signal enables data flow from B to A.

4. Enable Control:

- OE (Pin 19): It's the Output Enable pin. A LOW signal here activates the outputs, while a HIGH signal turns them off, placing them in the high-impedance state.

Design Tips:

- Bypass Capacitance: A capacitor of around 0.1µF between VCC and GND (close to the 74HC245D) can filter out voltage spikes, providing stable operation.

- Bus Management: When using multiple transceivers on a single bus, ensure only one is active at a time to prevent data corruption.

- Decoupling: With any IC, decoupling capacitors help in reducing noise. Place them close to the IC for optimal performance.

To encapsulate, the 74HC245D is a vital tool in a designer's toolbox. With its ability to control data flow direction and effectively isolate sections of a bus, it ensures smooth communication in complex digital systems. When implementing it, always consider potential data clashes and electrical noise. Your data will arrive intact and on schedule thanks to good design.

74HC245D FAQ

1. How to order 74HC245D on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that 74HC245D is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the 74HC245D. All suppliers must pass our qualification reviews before they can publish their products including 74HC245D on icwhale.com; we pay more attention to the channels and quality of 74HC245D products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the 74HC245D price and inventory displayed accurate?

The price and inventory of 74HC245D fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of 74HC245D?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 74HC245D we delivered, we will accept the replacement or return of the 74HC245D only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of 74HC245D.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
