What is the Additional Feature ?

Name: 74HC244D
Brand: Toshiba Semiconductor and Storage
SKU: 74HC244D
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Toshiba Semiconductor and Storage 74HC244D

Part No.:: 74HC244D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: 74HC244D.pdf

Description:: IC BUFFER NON-INVERT 6V 20SOIC

In Stock:: 401

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC244D Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
4
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

74HC244D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC244D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC244D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC244D information

Views：

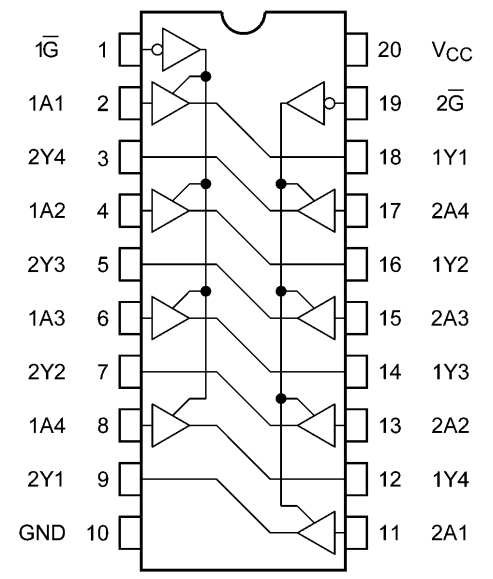

74HC244D Typical application Circuitry

74HC244D

74HC244D is a high-speed Si-gate CMOS device, specifically an octal buffer and line driver featuring non-inverted, 3-state outputs. This chip provides a buffer between two parts of a circuit, ensuring that input and output remain isolated. The 3-state output mode means the output can be set to high, low, or high-impedance (off).

Primary Features of the 74HC244D:

- Octal Configuration: The 74HC244D consists of eight non-inverting buffers.

- 3-State Outputs: This feature allows multiple 74HC244D chips to be tied to a single data bus without interfering with one another.

- High Current Drive Capability: Suitable for driving high-capacitive or low-impedance loads.

Common Application Scenarios:

- Data Bus Buffering: 74HC244D can serve as an intermediary on a data bus, enabling or disabling data flow as needed.

- Driving Capacitive Loads: Due to its high current drive capability, it is apt for situations with capacitive loads.

- Input/Output Port Expansion: This chip can extend the I/O ports of microcontrollers or other digital devices.

Sample Application – Data Bus Buffering:

Let's explore using 74HC244D as a buffer on a data bus.

1. Power Connections:

- VCC (Pin 20): Connect to the positive supply voltage, typically +5V.

- GND (Pin 10): Connect to system ground.

2. Data Bus Connections:

- Inputs (A0-A7; Pins 2, 4, 6, 8, 11, 13, 15, 17): Connect these to the data bus or the device sending the data.

- Outputs (Y0-Y7; Pins 19, 18, 16, 14, 9, 7, 5, 3): Connect these to the destination device's data input or the main data bus.

3. Output Enable Control:

- OE1 and OE2 (Pins 1 and 19): These are the output enable pins. When LOW, the corresponding outputs are active. When HIGH, the outputs are in a high-impedance state. Depending on the application, you can control these pins with logic signals to activate or deactivate the buffers.

Key Design Considerations:

- Bypass Capacitors: Placing a 0.1µF bypass capacitor between VCC and GND near the 74HC244D will help stabilize its operation.

- Output Control: Always ensure that only one driver is active on a data bus. Multiple drivers can conflict and lead to bus contention.

- High-Impedance State: When the outputs are in high-impedance mode, they can easily pick up noise. Ensure that devices connected to these outputs handle high-impedance states appropriately.

In conclusion, 74HC244D offers a vital solution in digital electronics, especially where data integrity and isolation are paramount. Whether for buffering, driving, or expansion purposes, having a firm grasp of its functionalities ensures optimized circuitry performance.
