What is the Additional Feature ?

Name: 74HC14D/S256,118
Brand: NXP USA Inc.
SKU: 74HC14D/S256,118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. 74HC14D/S256,118

Part No.:: 74HC14D/S256,118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC14D/S256,118.pdf

Description:: IC INVERT SCHMITT 6CH 1-INP 14SO

In Stock:: 2570

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC14D/S256,118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC14D/S256,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC14D/S256,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC14D/S256,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC14D/S256,118 information

Views：

74HC14D/S256,118 Typical application Circuitry

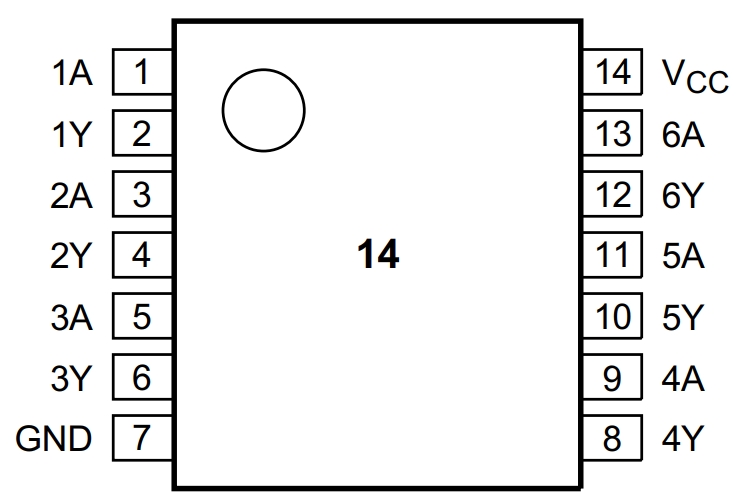

74HC14D S256,118

A hex inverting Schmitt trigger is the 74HC14D/S256,118. It belongs to the family of high-speed CMOS (Complementary Metal Oxide Semiconductor) integrated circuits known as the 74HC. The Schmitt trigger is a type of comparator with hysteresis that is commonly used to clean up noisy signals and to convert analog signals into digital ones.

Parameters:

- Supply voltage range: 2.0 to 6.0V

- Input leakage current: ±1µA maximum at VCC = 6.0V

- Propagation delay time: 9ns typical at VCC = 5.0V

Applications:

- Signal conditioning

- Waveform shaping

- Oscillators and timers

- Logic level conversion

Circuit example:

One common application of the 74HC14D/S256,118 is to clean up a noisy signal from a sensor. In this example, I will describe how to use the 74HC14D/S256,118 to clean up the signal from a simple push-button switch.

1. Connecting the power supply:

- Connect the 74HC14D/S256,118's VCC pin (pin 14) to a 5V power source.

- Connect the power supply's ground to the 74HC14D/S256,118's GND pin (pin 7).

2. Input connection:

- Connect the push-button switch's one terminal to the ground.

-Connect the other terminal of the pushbutton switch to the 74HC14D/S256,118's pin 1 of the first inverter.

- Connect a 10kΩ pull-up resistor from the input of the first inverter (pin 1) to VCC.

3. Output connection:

- Connect the digital device's input to the output of the first inverter (pin 2) so that it can receive the clean signal.

4. Testing the circuit:

- When the push-button switch is not pressed, the input of the first inverter should be high due to the pull-up resistor, and therefore the output should be low.

- When the push-button switch is pressed, the input of the first inverter should be low, and therefore the output should be high.

Considerations for designing the circuit:

When designing a circuit with the 74HC14D/S256,118, it is important to consider the following:

1. Voltage levels: Ensure that the supply voltage is within the specified range of 2.0 to 6.0V.

2. Input leakage current: Take into account the input leakage current, which can affect the performance of the circuit, especially at higher supply voltages.

3. Propagation delay time: Consider the propagation delay time, which can affect the timing of the circuit, especially in applications where precise timing is required.

4. Interference and noise: Make sure to take steps to minimize interference and noise in the circuit, such as using proper grounding techniques and shielding.

By taking these factors into consideration, you can ensure that your circuit will perform as expected and that you will get the most out of your 74HC14D/S256,118.
