NXP USA Inc. 74HC14D/S200,118

Part No.:: 74HC14D/S200,118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC14D/S200,118.pdf

Description:: IC INVERT SCHMITT 6CH 1-INP 14SO

In Stock:: 3468

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC14D/S200,118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC14D/S200,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC14D/S200,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC14D/S200,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC14D/S200,118 information

Views：

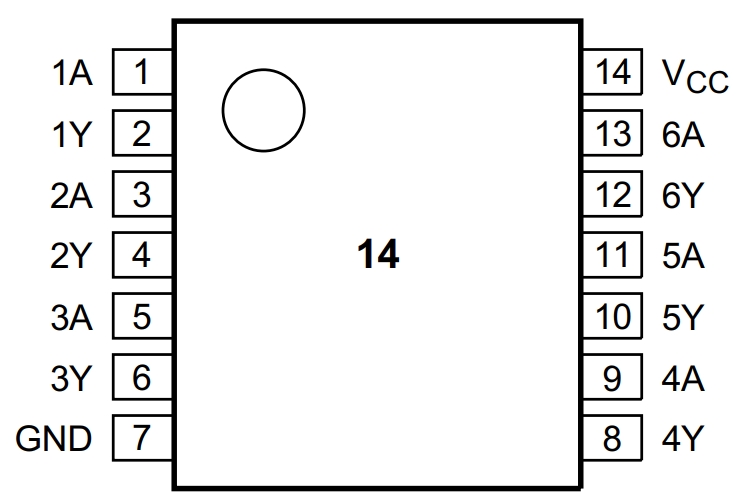

74HC14D/S200,118 Typical application Circuitry

74HC14D S200,118

74HC14D/S200,118 is a hex inverting Schmitt trigger, which is a part of the 74HC family of high-speed CMOS (Complementary Metal Oxide Semiconductor) integrated circuits. This type of component is used primarily for its hysteresis properties, cleaning up noisy signals and converting analog signals to digital.

Applications:

The 74HC14D/S200,118 is useful in various applications such as:

- Signal conditioning

- Waveform shaping

- Oscillators and timers

- Logic level conversion

Parameters:

The 74HC14D/S200,118 has the following characteristics:

- Supply voltage range: 2.0 to 6.0V

- Input leakage current: ±1µA maximum at VCC = 6.0V

- Propagation delay time: 9ns typical at VCC = 5.0V

Circuit Example:

In a case where we want to use the 74HC14D/S200,118 to create a square wave oscillator, the following steps can be taken:

1. Power supply connection:

- Connect the VCC pin (pin 14) of 74HC14D/S200,118 to a 5V power supply.

- Connect the power supply's ground to the 74HC14D/S200,118's GND pin (pin 7).

2. Oscillator setup:

- Connect the second inverter's pin 3 input to the output of the first inverter (pin 2).

- Connect a 100nF capacitor between the input of the first inverter (pin 1) and ground.

- Connect a 10kΩ resistor between the output of the second inverter (pin 4) and the input of the first inverter (pin 1).

3. Output connection:

- Connect the output of the second inverter (pin 4) to the input of a digital device that will receive the square wave signal.

Design Considerations:

When designing a circuit with the 74HC14D/S200,118, consider the following:

1. Voltage Levels: Ensure that the supply voltage is within the specified range of 2.0 to 6.0V.

2. Input Leakage Current: Account for the input leakage current, which can affect the performance of the circuit, especially at higher supply voltages.

3. Propagation Delay Time: The propagation delay time should be considered as it can affect the timing of the circuit, especially in precise timing applications.

4. Interference and Noise: Implement measures to minimize interference and noise in the circuit, using proper grounding techniques and shielding.

These recommendations will help you maximize the functionality of your circuit and make the most of your 74HC14D/S200,118.
