Name: 74HC14D-Q100,118
Brand: Nexperia USA Inc.
SKU: 74HC14D-Q100,118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. 74HC14D-Q100,118

Part No.:: 74HC14D-Q100,118

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: 74HC14D-Q100,118.pdf

Description:: IC INVERT SCHMITT 6CH 1-INP 14SO

In Stock:: 2602

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC14D-Q100,118 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC14D-Q100,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC14D-Q100,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC14D-Q100,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC14D-Q100,118 information

Views：

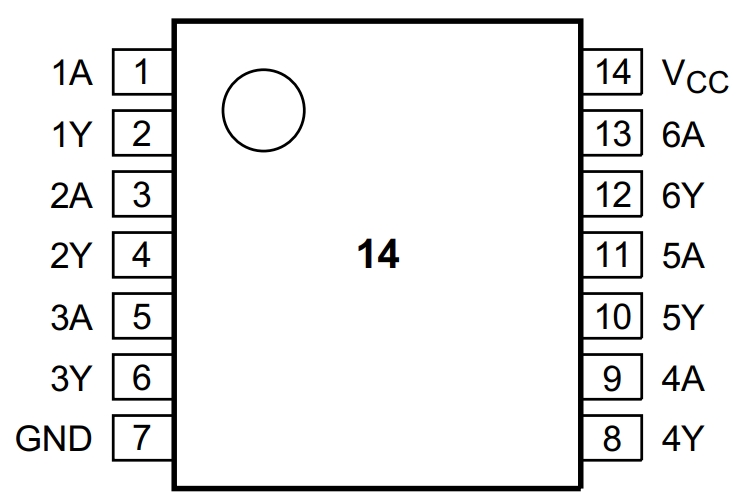

74HC14D-Q100,118 Typical application Circuitry

74HC14D-Q100,118

The 74HC14D-Q100,118 is a hex inverter with Schmitt-trigger inputs, part of the high-speed Si-gate CMOS family. It is designed to transform irregular or noisy signals into clean, stable digital outputs, which is achieved by the Schmitt-trigger characteristic of its inputs.

Application Scenarios:

- Waveform shaping

- Input debouncing for buttons and switches

- Oscillator circuits

- Logic level translation

Parameter Features:

- Supply voltage range: 2 V to 6 V

- Low-level output current: -0.7 mA

- 7.8 mA is the low output current.

- Propagation delay: 11 ns (max)

Application Scenario: Logic Level Translation

1. Circuit Description

- The 74HC14D-Q100,118 can be used to translate logic levels between devices operating at different voltage levels.

2. Circuit Connections

- Connect the input of one of the Schmitt-trigger inverters (pin 1) to the output of the lower voltage level device.

- Connect the corresponding output (pin 2) to the input of the higher voltage level device.

- Connect pin 14 (Vcc) to the supply voltage of the higher voltage level device, ensuring it is within the range of 2 V to 6 V.

- Connect pin 7 (ground) to the circuit ground.

3. Design Considerations

- Make that the supplied voltage for the 74HC14D-Q100,118 is within the permitted range.

- Verify that the high-level and low-level output currents are compatible with the connected devices.

- Check that the output is properly interfaced with the destination circuit or microcontroller.

When configured in this manner, the 74HC14D-Q100,118 chip will convert the logic levels from the lower voltage device to be compatible with the higher voltage device, facilitating seamless communication between them.
