Nexperia USA Inc. 74HC139DB,112

Part No.:: 74HC139DB,112

Manufacturer:: Nexperia USA Inc.

Package:: 16-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HC139DB,112.pdf

Description:: IC DECODER/DEMUX 1X2:4 16SSOP

In Stock:: 2974

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC139DB,112 Specifications

Packaging:
Tube
Series:
74HC
ProductStatus:
Obsolete
Type:
Decoder/Demultiplexer
Circuit:
1 x 2:4
IndependentCircuits:
2
Current-OutputHighLow:
5.2mA, 5.2mA
VoltageSupplySource:
Single Supply
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC139DB,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC139DB,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC139DB,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC139DB,112 information

Views：

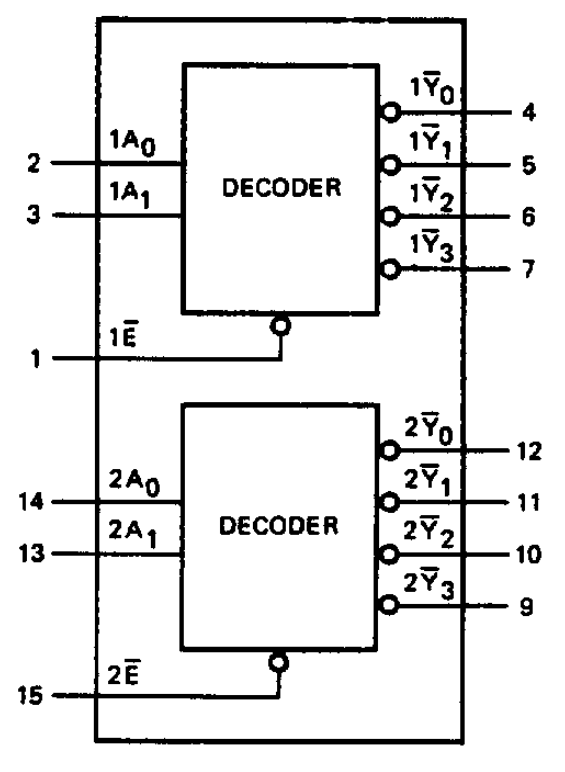

74HC139DB,112 Typical application Circuitry

74HC139DB,112

The 74HC139DB,112 is an integral component of the 74HC series, known for its high-speed CMOS technology. This device is specifically designed to cater to the needs of high-performance circuit design through its dual 2-to-4 line decoder/demultiplexer functionality. The "DB" in its designation highlights the device's package type, while "112" refers to its specific configuration or version within the 74HC139 product line. The versatility and efficiency of the 74HC139DB,112 make it a preferred choice for applications requiring precise logic operations, such as computer systems, signal routing, and data management tasks.

1. Series Distinction: The 74HC series stands out for its compatibility with TTL (Transistor-Transistor Logic) levels while offering the benefits of CMOS technology, including lower power consumption and higher noise immunity. Within this series, the 74HC139DB,112 exemplifies these characteristics, providing a reliable solution for decoding and demultiplexing applications.

2. Pin Configuration and Connection Strategy: The 74HC139DB,112 is encapsulated in a SSOP16 (Shrink Small Outline Package), featuring 16 pins that include two independent 2-to-4 line decoders, each with its own address input, enable input, and four unique output pins. For optimal functionality, the address inputs (A0, A1 for decoder 1; A2, A3 for decoder 2) must be connected to the logic signals that are to be decoded. The enable inputs (E1 for decoder 1; E2 for decoder 2) must be held low to activate the decoding function. Outputs (Y0 to Y3 for decoder 1; Y4 to Y7 for decoder 2) deliver the decoded signals, inverting the input logic when the decoder is enabled.

3. Electrical Characteristics: Operating within a supply voltage range of 2.0V to 6.0V, the 74HC139DB,112 is designed for interfacing with a wide array of logic families. This flexibility in voltage compatibility ensures that the device can be easily integrated into both low-power and standard digital circuits. It's essential to connect the VCC pin to the positive supply voltage while grounding the GND pin to establish a common reference point for all logic levels.

4. Functional Implementation: The 74HC139DB,112's dual-decoder configuration allows for a compact and efficient design solution, reducing the need for multiple chips to perform the same logic functions. By correctly configuring the address and enable inputs, users can achieve a wide range of logic operations, facilitating complex logic circuit designs with minimal hardware.

5. Optimizing Circuit Performance: For ensuring stable operation, it is advisable to incorporate decoupling capacitors close to the VCC and GND pins of the 74HC139DB,112. This measure helps in mitigating potential power supply noise, which is crucial for maintaining the integrity of the logic signals being processed by the device.

In summary, the 74HC139DB,112 emerges as a standout component within the 74HC series, offering dual 2-to-4 line decoding/demultiplexing functionality in a compact and efficient package. By following precise pin connection guidelines, accommodating a broad range of supply voltages, and implementing strategic decoupling measures, designers can leverage the 74HC139DB,112 to create sophisticated and reliable logic circuits. This device not only exemplifies the high-speed, low-power ethos of the CMOS technology but also enhances the design flexibility and performance of digital systems requiring precise decoding and demultiplexing capabilities.
