Nexperia USA Inc. 74HC138DB,112

Part No.:: 74HC138DB,112

Manufacturer:: Nexperia USA Inc.

Package:: 16-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HC138DB,112.pdf

Description:: IC DECODER/DEMUX 1X3:8 16SSOP

In Stock:: 3630

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC138DB,112 Specifications

Packaging:
Tube
Series:
74HC
ProductStatus:
Obsolete
Type:
Decoder/Demultiplexer
Circuit:
1 x 3:8
IndependentCircuits:
1
Current-OutputHighLow:
5.2mA, 5.2mA
VoltageSupplySource:
Single Supply
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC138DB,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC138DB,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC138DB,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC138DB,112 information

Views：

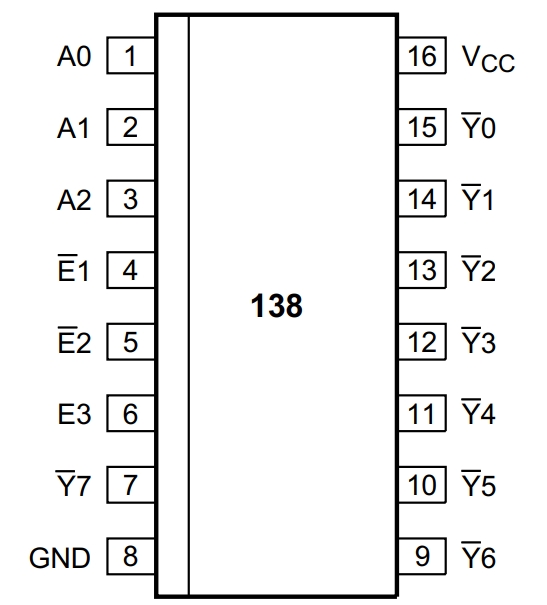

74HC138DB,112 Typical application Circuitry

74HC138DB,112

74HC138DB,112 is a 3-to-8 line decoder/demultiplexer integrated circuit (IC), part of the high-speed Si-gate CMOS family. This IC converts one of eight mutually exclusive outputs from three binary-coded inputs. It's an ideal component for hardware addressing and data routing applications.

Application Scenarios:

1. Data routing in communication equipment.

2. Address decoding in microcontrollers.

3. Control signal generation in consumer electronics.

Example Application: Address Decoding in a Microcontroller-Based System

Let's take a closer look at using the 74HC138DB,112 for address decoding in a microcontroller system.

1. Pin Connection: Connect pins A0, A1, and A2 to the address output pins of the microcontroller.

2. Enable Pins Configuration: Connect the E1 and E2 pins to the Vcc and G2A and G2B pins to the ground, thus enabling the chip.

3. Output Pins Configuration: Connect the Y0 to Y7 output pins to the address lines of the peripheral devices.

4. Power Supply: Connect the Vcc pin to a 5V supply and the GND pin to the ground.

Considerations for Design:

1. Voltage Compatibility: Make that the microcontroller's voltage levels are compatible with the 74HC138DB,112.

2. Timing: Account for the propagation delay of the 74HC138DB,112 to ensure correct data routing.

3. Heat Dissipation: Provide adequate ventilation to prevent the IC from overheating.

4. Noise Filtering: Use capacitors to filter out noise and prevent false triggering.

In summary, 74HC138DB,112 is a versatile IC that can be utilized for address decoding in a microcontroller-based system, ensuring efficient communication between the microcontroller and peripheral devices.
