NXP USA Inc. 74HC132DB,118

Part No.:: 74HC132DB,118

Manufacturer:: NXP USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC132DB,118.pdf

Description:: IC GATE NAND 4CH 2-INP 14-SSOP

In Stock:: 2032

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC132DB,118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC132DB,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC132DB,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC132DB,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC132DB,118 information

Views：

74HC132DB,118 Typical application Circuitry

74HC132DB,118

74HC132DB,118 is a quad 2-input NAND gate chip with Schmitt-trigger inputs. This chip is part of the high-speed Si-gate CMOS family and has specific characteristics that make it suitable for implementation in applications like waveform shaping, signal conditioning, and noise elimination in digital communication systems.

Application Scenarios:

- Signal conditioning in communication systems

- Waveform shaping in digital circuits

- Noise filtering in sensor interfaces

Parameter Features:

- Operating voltage range: 2.0V to 6.0V

- High noise immunity

- Low power consumption

- ESD protection

Example Application: Signal Conditioning in a Communication System

In this scenario, 74HC132DB,118 is used for signal conditioning in a communication system to improve the quality of the received signals.

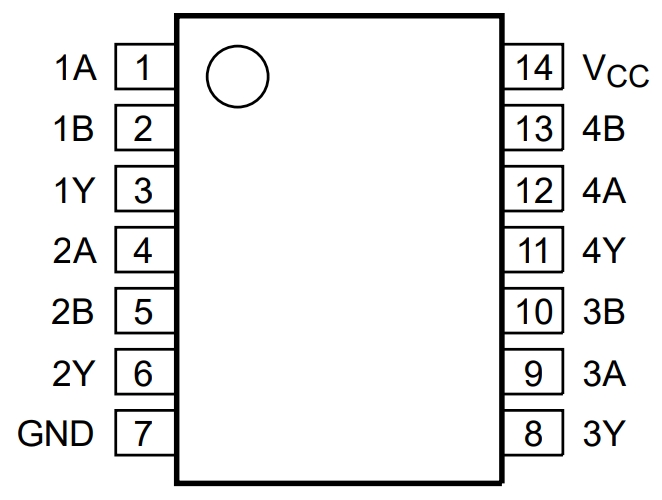

1. Power Supply Connections:

- Connect the 14th pin (VCC) to the 5V power supply of the communication system.

- Connect the 7th pin (GND) to the system's ground.

2. Input and Output Connections:

- Connect the received signal to pins 1A (1st pin) and 1B (2nd pin).

- The conditioned signal will be available at pin 1Y (3rd pin) and can be routed to the next stage of the system.

3. Utilization of Multiple Gates:

- If multiple signals need conditioning, utilize the other three gates available in the chip. Connect additional signals to the corresponding input pins (4A, 4B, etc.) and route the conditioned signals from the corresponding output pins.

Design Considerations:

- Voltage Compatibility:

- Ensure the voltage levels of the communication system are compatible with the operating voltage range of 74HC132DB,118.

- Signal Integrity:

- Implement proper grounding and shielding techniques to maintain the integrity of the signals during conditioning.

- Propagation Delay:

- Consider the propagation delay introduced by 74HC132DB,118 and ensure it meets the timing requirements of the communication system.

By following these steps, 74HC132DB,118 can be effectively utilized to improve the quality of received signals in a communication system, ensuring reliable and clear communication.
