Nexperia USA Inc. 74HC132DB,112

Part No.:: 74HC132DB,112

Manufacturer:: Nexperia USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC132DB,112.pdf

Description:: IC GATE NAND 4CH 2-INP 14SSOP

In Stock:: 4992

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC132DB,112 Specifications

Packaging:
Bulk,Tube
Series:
74HC
ProductStatus:
Obsolete
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC132DB,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC132DB,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC132DB,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC132DB,112 information

Views：

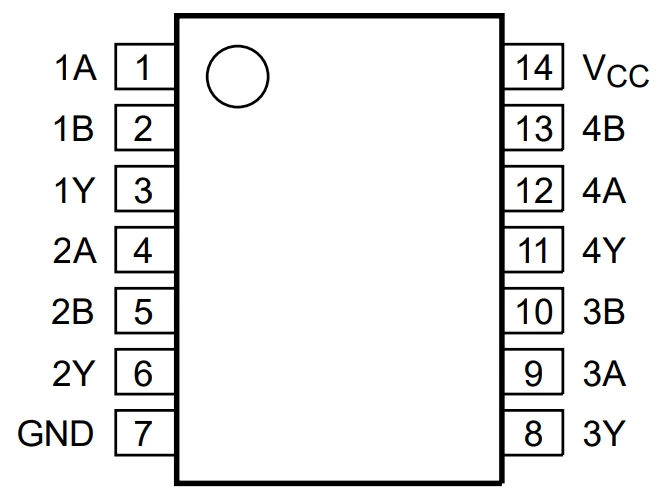

74HC132DB,112 Typical application Circuitry

74HC132DB,112

The CMOS-based integrated circuit 74HC132DB,112 comprises of four separate 2-input NAND gates that operate using the Schmitt-trigger mechanism. It is designed to accept standard CMOS levels.

Application Scenarios:

- Digital signal processing

- Waveform generation

- Oscillators and timers

- Logic circuitry

Parameter Features:

- Operating voltage range: 2.0 to 6.0 V

- Propagation delay: 9 ns

- High noise immunity

- Low power consumption

Example Application: Pulse Width Modulation (PWM) Generator

Here's how you can design a PWM generator using the 74HC132DB,112.

1. Configuration of the NAND Gate:

- Connect VCC to pin 14 and GND to pin 7 to power the chip.

- Connect the input signal to pin 1 (1A) and pin 2 (1B) of the first NAND gate.

2. Setting Up the Feedback Loop:

- Connect a resistor between pin 3 (1Y) and pin 2 (1B).

- Connect a capacitor from pin 2 (1B) to the ground.

3. Connecting the Output:

- The output PWM signal can be taken from pin 3 (1Y).

Design Considerations:

- Voltage Compatibility:

- Ensure the input signals are compatible with the voltage levels that the 74HC132DB,112 operates on.

- Component Values:

- Select appropriate resistor and capacitor values to achieve the desired frequency of the PWM signal.

- Signal Integrity:

- Utilize the high noise immunity feature of the 74HC132DB,112 to maintain a clean PWM signal.

By carefully considering these design factors, you can successfully utilize the 74HC132DB,112 to create a precise and efficient PWM generator for various applications.
