Toshiba Semiconductor and Storage 74HC132D

Part No.:: 74HC132D

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 14-SOIC

Datasheet:: 74HC132D.pdf

Description:: IC GATE NAND 4CH 2-INP 14SOIC

In Stock:: 1553

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC132D Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
19ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

74HC132D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC132D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC132D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC132D information

Views：

74HC132D Typical application Circuitry

The 74HC132D is an integrated circuit that belongs to the 74HC series, and it primarily functions as a quad 2-input NAND gate with Schmitt-trigger inputs. These inputs are especially well suited for converting gradually changing input signals into precisely defined jitter-free output signals because they are designed to have hysteresis between the positive-going and negative-going input thresholds.

Functional Characteristics of 74HC132D:

- Quad 2-Input NAND Gates: The 74HC132D possesses four independent 2-input NAND gates.

- Schmitt Trigger Inputs: This feature provides a hysteresis loop, making it robust against noisy inputs and allowing it to be used for signal conditioning.

- High-Speed CMOS Logic: It offers the advantages of a wide working voltage range, low power consumption, and high noise immunity by utilizing CMOS technology.

Application Scenarios:

- Signal Conditioning: For cleaning up noisy digital signals.

- Oscillator Circuits: Often used in RC oscillator configurations.

- Pulse Shaping: To generate specific pulse waveforms.

- Logic Operations: General logic processing in digital circuits.

Simple Oscillator Circuit using 74HC132D:

A simple application is an RC oscillator, where the Schmitt-trigger input of the 74HC132D works in conjunction with a resistor (R) and a capacitor (C) to produce an oscillating output.

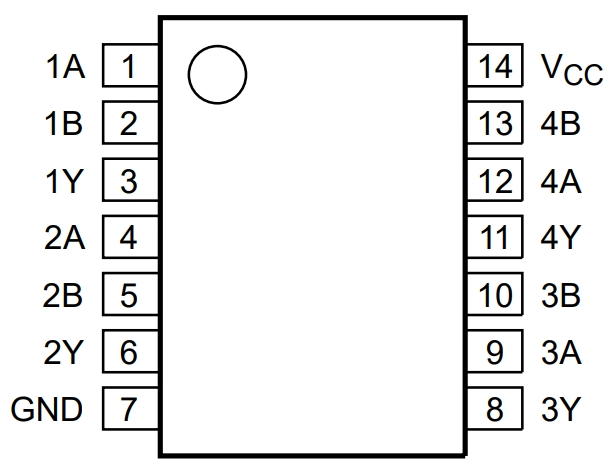

1. Power Supply:

- VCC (Pin 14): Connect to the positive supply voltage, typically +5V.

- GND (Pin 7): Connect to the ground or 0V reference of your circuit.

2. Oscillator Configuration:

- Input A of First NAND gate (Pin 1): Connect to the junction of R and C.

- Output Y of First NAND gate (Pin 3): Feed back to the input B of the same NAND gate (Pin 2) using a short jumper wire.

- Connect one end of the resistor (R) to VCC and the other end to the junction of the capacitor (C) and Pin 1.

- Connect one terminal of the capacitor (C) to the junction with the resistor and Pin 1, and its other terminal to GND.

3. Output:

- The oscillating output can be taken from Pin 3.

(Note: The other NAND gates can be used for similar or other functions as needed.)

Design Considerations:

- Component Selection: The values of R and C dictate the frequency of oscillation. The output frequency will change if these values are altered.

- Power Consumption: Being a CMOS device, the 74HC132D consumes minimal power when static. However, consider the dynamic power during oscillations.

- Noise Immunity: The Schmitt-trigger inputs give the 74HC132D inherent noise immunity. Still, it's essential to ensure that the IC is not exposed to excessive noise or voltages beyond its tolerable limits.

- Decoupling: A decoupling capacitor (e.g., 100nF) between VCC and GND, close to the IC, can help in reducing noise.

In conclusion, the 74HC132D stands out as a versatile logic gate IC with the added advantage of Schmitt-trigger inputs. Whether you're designing a simple oscillator or conditioning a noisy digital signal, this chip can prove to be an invaluable asset in your electronics toolkit.
