Name: 74HC08DR2G
Brand: ON Semiconductor
SKU: 74HC08DR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor 74HC08DR2G

Part No.:: 74HC08DR2G

Manufacturer:: ON Semiconductor

Package:: 14-SOIC

Datasheet:: 74HC08DR2G.pdf

Description:: IC GATE AND 4CH 2-INP 14SOIC

In Stock:: 2665

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC08DR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Obsolete
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
13ns @ 6V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

74HC08DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC08DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC08DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC08DR2G information

Views：

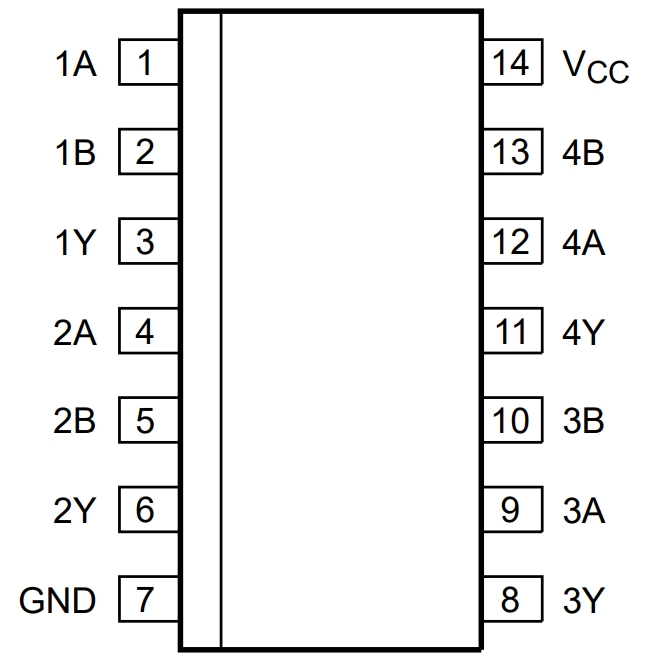

74HC08DR2G Typical application Circuitry

74HC08DR2G

The 74HC08DR2G is a high-speed CMOS, quadruple 2-input AND gate integrated circuit. This chip is part of the 74HC family, known for its low power consumption and high noise immunity.

Applications and Parameters:

The 74HC08DR2G can be used in various applications, such as:

- Digital computation

- Signal processing

- Control systems

- Logic functions in microprocessors and microcontrollers

Key parameters of the 74HC08DR2G include:

- Operating voltage range: 2V to 6V

- Propagation delay: around 8ns to 30ns (depending on load and operating voltage)

- High noise immunity

- Low power dissipation

Example Application: Creating a Control System Logic Gate

Here's how you can use the 74HC08DR2G in a control system application:

1. Power Supply Connection:

- Connect pin 14 (VCC) to your desired voltage source within the range of 2V to 6V, and connect pin 7 (GND) to the circuit's ground.

2. Input Connection for Logic Control:

- Connect the first control signal to pin 1 (A1) and the second control signal to pin 2 (B1) of the first AND gate.

3. Output for Further Processing:

- Connect the output from pin 3 (Y1) to the next stage of your control system or processing unit.

4. Ensuring Unused Gates are Inactive:

- If the remaining AND gates are not in use, tie their inputs to the ground (GND) to prevent them from floating.

Design Considerations:

1. Voltage Compatibility:

- Ensure the operating voltage is compatible with other components in your control system.

2. Noise Immunity:

- Though the 74HC08DR2G has high noise immunity, always consider additional filtering if the circuit operates in a noisy environment.

3. Load Capacitance:

- Be aware of the load capacitance, as it affects the propagation delay of the output signal.

4. Input and Output Currents:

- Ensure the input and output currents are within the specified limits of the IC.

By adhering to these guidelines, you can effectively incorporate the 74HC08DR2G in a control system application, benefiting from its low power consumption and high noise immunity.
