Nexperia USA Inc. 74HC08DB,118

Part No.:: 74HC08DB,118

Manufacturer:: Nexperia USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC08DB,118.pdf

Description:: IC GATE AND 4CH 2-INP 14SSOP

In Stock:: 3121

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC08DB,118 Specifications

Packaging:
Tape & Reel (TR)
Series:
74HC
ProductStatus:
Obsolete
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC08DB,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC08DB,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC08DB,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC08DB,118 information

Views：

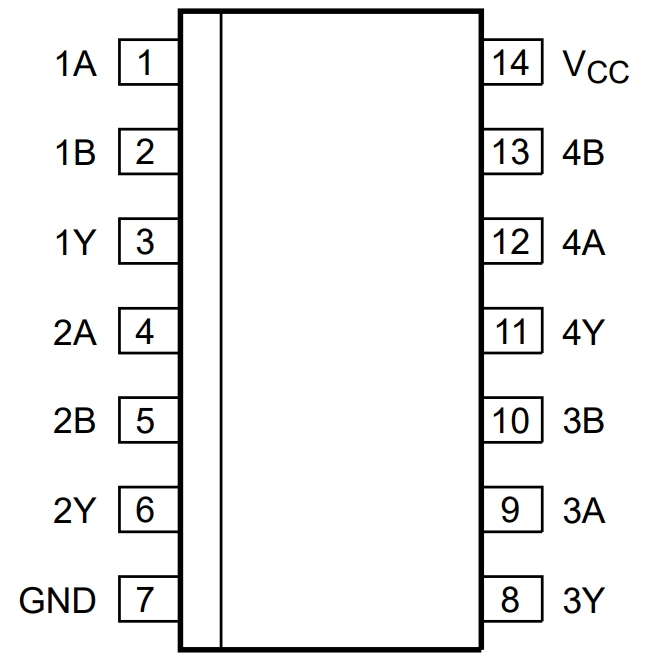

74HC08DB,118 Typical application Circuitry

74HC08DB,118

The 74HC08DB,118 is a quadruple 2-input AND gate integrated circuit that operates with high-speed CMOS technology. This chip is part of the 74HC family, which is characterized by low power consumption, high noise immunity, and high-speed performance.

Applications and Parameters:

The 74HC08DB,118 can be employed in various scenarios such as:

- Digital computation

- Control systems

- Logic functions in microprocessors and microcontrollers

- Signal processing

The key features of 74HC08DB,118 include:

- Operating voltage range: 2V to 6V

- Propagation delay: approximately 8ns to 30ns (dependent on load and operating voltage)

- High noise immunity

- Low power dissipation

Example Application: Digital Signal Processor Logic Gate

Let's take an example of how to use the 74HC08DB,118 in a digital signal processing application.

1. Power Supply Connection:

- Link pin 14 (VCC) to your desired voltage source, within the range of 2V to 6V, and link pin 7 (GND) to the circuit's ground.

2. Input Connection for Logic Processing:

- Attach the first signal to pin 1 (A1) and the second signal to pin 2 (B1) of the first AND gate.

3. Output Connection:

- Connect the output from pin 3 (Y1) to the next stage of your signal processing unit.

4. Deactivating Unused Gates:

- If the remaining AND gates are not being utilized, connect their inputs to the ground (GND) to prevent floating inputs.

Design Considerations:

When incorporating the 74HC08DB,118 into your circuit design, consider the following:

1. Voltage Compatibility:

- Ensure the operating voltage is compatible with other elements in your signal processing system.

2. Filtering for Noise:

- Even though the 74HC08DB,118 has high noise immunity, contemplate additional filtering if the circuit is in a noisy environment.

3. Consideration of Load Capacitance:

- Load capacitance can affect the propagation delay of the output signal, so it is important to take it into account.

4. Adherence to Current Limits:

- Confirm that the input and output currents are within the specified limits of the integrated circuit.

By following these guidelines, you can optimize the use of 74HC08DB,118 in your digital signal processing application, taking full advantage of its low power consumption and high noise immunity properties.
