NXP USA Inc. 74HC08DB,112

Part No.:: 74HC08DB,112

Manufacturer:: NXP USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC08DB,112.pdf

Description:: IC GATE AND 4CH 2-INP 14-SSOP

In Stock:: 2398

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC08DB,112 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC08DB,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC08DB,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC08DB,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC08DB,112 information

Views：

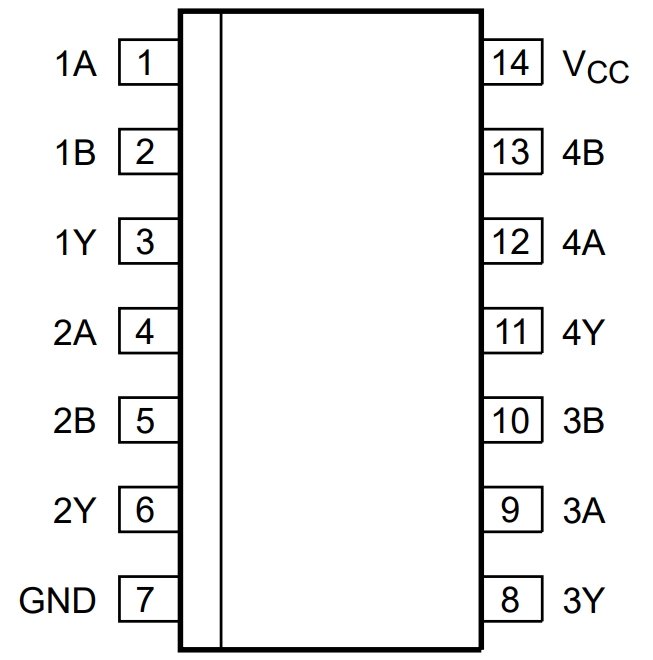

74HC08DB,112 Typical application Circuitry

74HC08DB,112

74HC08DB,112 is a quad 2-input AND gate integrated circuit (IC). This IC consists of four independent 2-input AND gates. An AND gate does a logical AND operation and only produces a high output (1) when both of its inputs are also high (1).

Applications and Parameters:

The 74HC08DB,112 can be employed in numerous applications such as:

- Circuits for digital logic

- Microprocessor interface

- Control circuits

- Signal processing

The following are significant characteristics:

- Operating voltage range: 2V to 6V

- High-speed operation

- Low power consumption

- High noise immunity

Application example: Logic Gate Combiner

Here is a step-by-step procedure for setting up a circuit that combines the output of two AND gates within the 74HC08DB,112:

1. Power Supply Connection: Connect pin 7 (GND) to the ground and pin 14 (VCC) to your voltage source (2V to 6V).

2. Input Connections for the First AND Gate: Connect input signals to pins 1 (A1) and 2 (B1) of the first AND gate.

3. Input Connections for the Second AND Gate: Connect different input signals to pins 4 (A2) and 5 (B2) of the second AND gate.

4. Connecting the Outputs to a Third AND Gate: Connect the output of the first AND gate (pin 3, Y1) to pin 9 (A3) and the output of the second AND gate (pin 6, Y2) to pin 10 (B3) of the third AND gate.

5. Final Output: The final output will be available at pin 8 (Y3) and will be high only when all the inputs to the first two AND gates are high.

Design Considerations:

1. Avoid Floating Inputs: Make sure that no input is left floating as it can lead to unpredictable behavior.

2. Proper Grounding: Ensure that the ground is properly connected to prevent noise interference.

3. Use of Decoupling Capacitors: It is advisable to use a 0.1uF decoupling capacitor close to the VCC pin to filter out high-frequency noise.

4. Check Voltage Levels: Confirm that the input signal levels are compatible with the IC's operation.

5. Adequate Power Supply: Ensure the power supply is capable of supporting the IC's demand.

In summary, 74HC08DB,112 is a versatile IC that can be used in various applications requiring logical AND operations. By considering the aforementioned factors, a reliable and effective circuit can be designed.
