Nexperia USA Inc. 74HC04DB-Q100J

Part No.:: 74HC04DB-Q100J

Manufacturer:: Nexperia USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC04DB-Q100J.pdf

Description:: IC INVERTER 6CH 1-INP 14SSOP

In Stock:: 3488

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC04DB-Q100J Specifications

Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
14ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC04DB-Q100J this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC04DB-Q100J price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC04DB-Q100J to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC04DB-Q100J information

Views：

74HC04DB-Q100J Typical application Circuitry

74HC04DB-Q100J

In the vast panorama of digital electronics, the 74HC04DB-Q100J secures its position as a pivotal element, indispensable for an array of applications.

Intrinsic Functionality:

The 74HC04DB-Q100J primarily serves as a hex inverter. It embodies six separate inverters, which invert the binary value of their input signals.

Where is it Used?:

1. Oscillator circuits.

2. Logic level translators.

3. Square wave generators.

4. Implementing NOT gate functions in logic circuits.

Salient Features:

1. Operating Range: Typically operates within a voltage range of 2V to 6V.

2. Output Drive Capacity: Equipped to drive up to 10 LSTTL loads, making it versatile across different logic families.

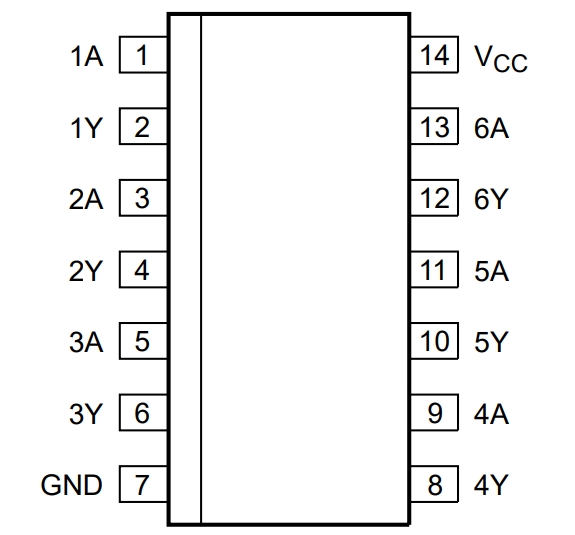

3. Pin Configuration: It typically comes with a 14-pin configuration, segregating 6 inputs, 6 outputs, a power, and a ground pin.

4. High-Speed Operation: Its ability to work seamlessly at high speeds renders it comparable to other TTL family members.

Application Scenario - Square Wave Generator:

1. Powering the Chip:

- Secure the 14th pin of the 74HC04DB-Q100J to your chosen positive voltage source, say +5V.

- Affix the 7th pin to the ground, establishing the chip's reference.

2. Initiating Oscillation:

- Fuse the output of a specific inverter (maybe from Pin 2) directly to the input of the subsequent inverter (Pin 3).

- This connection acts as the linchpin for generating oscillation.

3. Manipulating Frequency:

- Introduce a resistor (R) spanning from the second inverter's output (Pin 4) and tracing back to the original inverter's input (Pin 1).

- Append a capacitor (C) connecting the primary inverter's input (Pin 1) to the ground.

- The frequency (f) of oscillation can be approximated using: $ f \approx \frac{1}{0.7 \times R \times C} $.

4. Extracting the Square Wave:

- For reaping the square wave, access the output from the primary inverter, typically at Pin 2.

Imperatives in Designing:

1. Voltage Stabilization: Infusing a decoupling capacitor, preferably of 100nF, between Pin 14 and Pin 7 ensures a stable voltage.

2. Frequency Refinement: Tailor the frequency by fine-tuning the values of R and C in the oscillator circuit.

3. Temperature Regulation: While the 74HC04DB-Q100J isn't notoriously temperamental, ensuring sufficient spacing between adjacent components aids in heat dispersion.

4. Curtailing Crosstalk: Ensure optimal spacing between the input and output tracks to stave off unwanted signal interference.

To encapsulate, the versatility and robustness of the 74HC04DB-Q100J make it an integral component in digital electronics. Mastery over its functionalities can greatly benefit electronics aficionados and professionals alike.
