Nexperia USA Inc. 74HC04DB,112

Part No.:: 74HC04DB,112

Manufacturer:: Nexperia USA Inc.

Package:: 14-SSOP

Datasheet:: 74HC04DB,112.pdf

Description:: IC INVERTER 6CH 1-INP 14SSOP

In Stock:: 2785

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC04DB,112 Specifications

Packaging:
Tube,Tube
Series:
74HC
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
14ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC04DB,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC04DB,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC04DB,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC04DB,112 information

Views：

74HC04DB,112 Typical application Circuitry

74HC04DB,112

Hex inverter chip 74HC04DB,112 is used. This indicates that there are six separate inverters within. It belongs to the family of high-speed CMOS logic circuits known as 74HC. The inverter's primary function is to output the opposite of its input; if you give it a logic high (1) input, it gives a logic low (0) output, and vice versa.

Application Scenarios:

1. Signal inversion: One of the basic applications for 74HC04DB,112 is to simply invert a digital signal.

2. Oscillator circuits: In conjunction with feedback and a few passive components, it can be used to create simple oscillator circuits.

3. Waveform generators: It can be used in combination with resistors and capacitors to generate square waves.

4. Logic level shifting: Sometimes, the inverter is used to adapt signal levels between different logic families.

Parameters and Features:

- Voltage range: Typically, the operating voltage range for the 74HC series is 2V to 6V.

- High-speed CMOS: It is built using high-speed CMOS technology, which means it can operate at faster speeds than traditional CMOS devices.

- Low power consumption: One of the benefits of the 74HC series is its relatively low power consumption.

- Output drive capability: The 74HC04DB,112 can drive up to 10 LSTTL loads.

Application Circuit - Signal Inversion:

Let's describe a simple application where the 74HC04DB,112 is used for signal inversion.

Components:

1. 74HC04DB,112 hex inverter chip.

2. Resistor (10kΩ) - For input pull-down.

3. Input signal (can be from a microcontroller or another digital source).

4. Power source (e.g., 5V).

Circuit Steps:

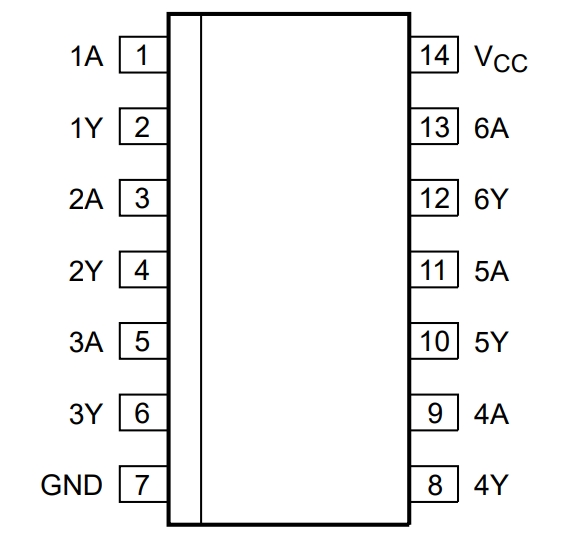

1. Powering the chip: Connect pin 14 (Vcc) of 74HC04DB,112 to the positive of your power source (e.g., 5V). Connect pin 7 (GND) to the ground of your power source.

2. Input setup: Connect the resistor (10kΩ) between the input signal and ground. This is a pull-down resistor ensuring the default state is LOW when no signal is applied.

3. Inverter input: Connect the input signal to pin 1 (input of the first inverter) of the 74HC04DB,112.

4. Inverter output: The inverted signal will be available at pin 2 (output of the first inverter).

5. (Optional) Repeat steps 3 and 4 for the other inverters if multiple inversions are needed.

Considerations:

- Input drive strength: Ensure that the driving signal has sufficient strength to drive the input of the inverter.

- Bypass capacitors: Place a 0.1uF capacitor between Vcc (pin 14) and GND (pin 7) close to the 74HC04DB,112 to decouple any noise.

- Unused inputs: All unused inputs should be tied either to Vcc or GND to prevent them from floating and consuming unnecessary power.

In conclusion, the 74HC04DB,112 is a versatile hex inverter chip with various applications. Its characteristics make it suitable for high-speed operations while maintaining low power consumption. Proper consideration and understanding of its features are necessary to effectively utilize it in various circuits.
