Name: 74HC04D/AU118
Brand: NXP USA Inc.
SKU: 74HC04D/AU118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. 74HC04D/AU118

Part No.:: 74HC04D/AU118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HC04D/AU118.pdf

Description:: IC INVERTER 6CH 1-INP 14SO

In Stock:: 52650

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC04D/AU118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
14ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC04D/AU118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC04D/AU118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC04D/AU118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC04D/AU118 information

Views：

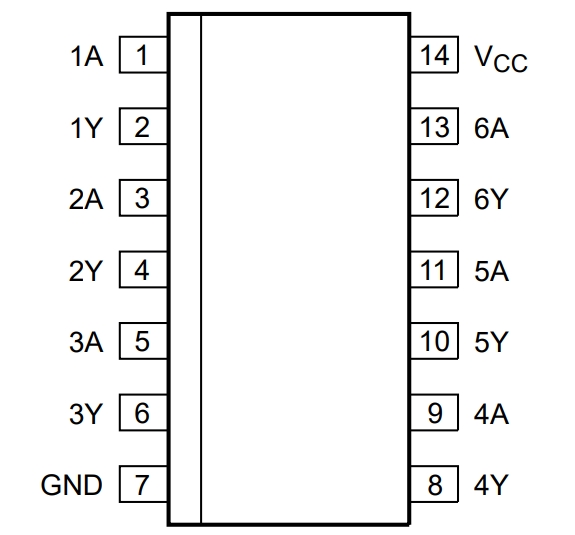

74HC04D/AU118 Typical application Circuitry

74HC04D AU118

74HC04D/AU118 is a hex inverter chip from the 74HC04 family. It functions as a digital logic gate that outputs the opposite of the input signal; a high (or logical '1') input yields a low (or logical '0') output and vice versa. This chip is part of the high-speed CMOS (Complementary Metal-Oxide-Semiconductor) technology, providing a combination of high-speed operation and low power consumption.

Applications and Parameters:

The 74HC04D/AU118 can be employed in a variety of scenarios, such as:

- Waveform generators

- Oscillators

- Logic signal inversion

- Driving high capacitive loads

It exhibits several useful parameters, including:

- High-speed operation

- Wide operating voltage range, typically 2V to 6V

- Low power consumption due to CMOS technology

- High noise immunity

Example Application: Square Wave Generator

Let's design a square wave generator circuit using 74HC04D/AU118:

1. Select Inverter:

- Use any one of the six inverters. Suppose we use the first inverter, which involves pins 1 (input) and 2 (output).

2. Connect Resistor and Capacitor for Oscillation:

- Connect a resistor (R1) between pin 2 (output) and pin 1 (input). Then, connect a capacitor (C1) from pin 1 (input) to the ground. The RC network will determine the frequency of the square wave.

3. Power Supply:

- Connect VCC (pin 14) to a voltage source within the range of 2V to 6V, and connect GND (pin 7) to the ground.

Design Considerations:

1. Unused Inputs:

- Unused inputs should not be left floating. Connect them to VCC or GND.

2. Decoupling Capacitors:

- To filter out high-frequency noise, place a 0.1uF decoupling capacitor near the VCC pin.

3. Power Consumption:

- Ensure that the power supply can handle the IC's consumption.

4. Oscillation Frequency:

- The values of R1 and C1 should be chosen carefully to obtain the desired frequency.

5. Proper Grounding:

- Adequate grounding is necessary to minimize noise interference.

In conclusion, 74HC04D/AU118 is a versatile and functional chip with numerous applications. When designing a circuit, careful consideration of parameters such as power supply, noise, and component values will guarantee optimal performance and reliability.
