Nexperia USA Inc. 74HC04D,653

Part No.:: 74HC04D,653

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: 74HC04D,653.pdf

Description:: IC INVERTER 6CH 1-INP 14SO

In Stock:: 2622

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC04D,653 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
14ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC04D,653 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC04D,653 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC04D,653 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC04D,653 information

Views：

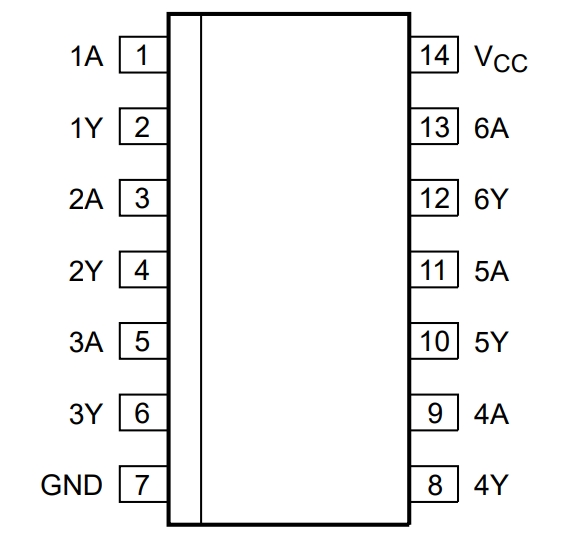

74HC04D,653 Typical application Circuitry

74HC04D,653

74HC04D,653 is a hex inverter chip, part of the 74HC04 family, which belongs to the high-speed CMOS (Complementary Metal-Oxide-Semiconductor) logic family. This chip consists of six inverters and is designed for performing digital logic inversion, where a high input (logical '1') yields a low output (logical '0'), and vice versa.

Applications and Parameters:

The 74HC04D,653 chip can be utilized in various scenarios such as:

- Signal Inversion

- Oscillator Circuits

- Square Wave Generators

- Logic Signal Processing

The chip's parameters include:

- High-speed operation

- Wide operating voltage range, typically 2V to 6V

- Low power consumption

- High noise immunity

Example Application: Square Wave Generator

Let's consider a square wave generator circuit using 74HC04D,653. The steps to set up the circuit are as follows:

1. Selection of Inverter:

- Choose one of the six inverters; for example, we'll use the first inverter with pin 1 as input and pin 2 as output.

2. Oscillation Setup:

- Connect a resistor (R1) between pin 2 (output) and pin 1 (input). Additionally, connect a capacitor (C1) from pin 1 (input) to the ground. The square wave's frequency is determined by the RC network.

3. Power Supply Connection:

- Connect GND (pin 7) to the ground and VCC (pin 14) to a voltage source that ranges from 2V to 6V.

Design Considerations:

1. Proper Grounding:

- Ensure a proper grounding to minimize noise interference.

2. Decoupling Capacitors:

- Use a 0.1uF decoupling capacitor near the VCC pin to filter out high-frequency noise.

3. Unused Inputs:

- Connect any unused inputs to GND or VCC to prevent floating and ensure stable operation.

4. Power Supply Stability:

- Confirm that the power supply can accommodate the IC's consumption.

In summary, 74HC04D,653 is a versatile and functional chip with a range of applications. By taking into consideration factors like noise, grounding, and proper component values, an effective and reliable circuit can be designed.
