What is the Additional Feature ?

Name: 74AHC1G08GW,165
Brand: Nexperia USA Inc.
SKU: 74AHC1G08GW,165
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. 74AHC1G08GW,165

Part No.:: 74AHC1G08GW,165

Manufacturer:: Nexperia USA Inc.

Package:: 5-TSSOP

Datasheet:: 74AHC1G08GW,165.pdf

Description:: IC GATE AND 1CH 2-INP 5TSSOP

In Stock:: 3142

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74AHC1G08GW,165 Specifications

Packaging:
Tape & Reel (TR)
Series:
74AHC
ProductStatus:
Obsolete
LogicType:
AND Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.5V ~ 1.65V
LogicLevel-High:
1.5V ~ 3.85V
MaxPropagationDelay@VMaxCL:
7.9ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74AHC1G08GW,165 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74AHC1G08GW,165 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74AHC1G08GW,165 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74AHC1G08GW,165 information

Views：

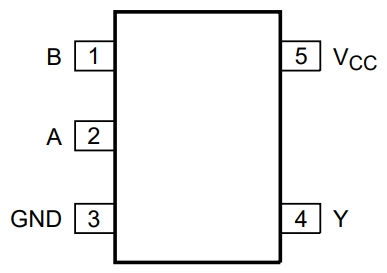

74AHC1G08GW,165 Typical application Circuitry

74AHC1G08GW,165

The 74AHC1G08GW,165 is a high-speed, CMOS single 2-input AND gate integrated circuit (IC) from the 74AHC family, encapsulated in a very small outline package.

Applications

The 74AHC1G08GW,165 finds applications in diverse fields ranging from simple logic gates operations to more complex systems like embedded systems, microcontroller interfaces, portable devices, and data processing units. It is the perfect choice for portable electronics, where power conservation is essential, due to its small size and low power requirements.

Key Parameters and Features

- Voltage Range: Operates from 2.0V to 5.5V, accommodating a variety of logic levels.

- High-Speed: Provides short propagation delays, guaranteeing prompt reaction times in demanding applications.

- Low Power Consumption: Reduces power consumption and lengthens battery life for portable devices.

- Excellent Noise Immunity: Provides dependable performance in electrically loud surroundings.

Application Scenario: Logic Level Shifting

One common application of the 74AHC1G08GW,165 is in logic level shifting, where it translates signals between different voltage domains. This is crucial when interfacing components operating at different logic levels, such as a 3.3V microcontroller with a 5V sensor.

Detailed Circuit Connection

- Input Voltage Compatibility: Initially, it's vital to ensure that the input voltages to the 74AHC1G08GW,165 are within its operating range. For a 3.3V microcontroller communicating with a 5V sensor, the 74AHC1G08GW,165's inputs can directly accept the 3.3V signals.

- Output Drive Capability: The output of the 74AHC1G08GW,165, connected to the sensor, needs to provide a high enough voltage level (in this case, close to 5V) to be recognized as a logic high by the sensor. This is achieved by powering the 74AHC1G08GW,165 with a 5V supply, thereby enabling it to output levels compatible with the sensor.

- Connecting the Inputs: The microcontroller's output pin is connected to one input of the 74AHC1G08GW,165 (let's say pin 1), while the other input (pin 2) can be tied to a high level (VCC) if not used, or connected to another control signal for AND logic operation.

- Output Connection: The output of the 74AHC1G08GW,165 (pin 3) is connected to the sensor's input. This configuration ensures that the sensor only receives a signal when both the microcontroller outputs a high signal, and the control condition is met (if applicable).

- Power Supply Connections: The VCC pin of the 74AHC1G08GW,165 is connected to a 5V supply, and the GND pin is connected to the system's ground. The IC receives electricity from this and is able to translate voltage levels.

Design Considerations

When designing a circuit with the 74AHC1G08GW,165, several factors need to be considered:

- Power Supply Noise: Ensure a clean power supply to avoid glitches in the output. A decoupling capacitor near the VCC pin can help filter out noise.

- Input Signal Integrity: Maintain clean and well-defined logic levels at the inputs to prevent erratic behavior.

- Output Load: Be mindful of the load connected to the output. Excessive load can degrade performance and lead to unreliable operation.

- Temperature and Environmental Conditions: Ensure the operating conditions are within the specified range for the 74AHC1G08GW,165.

By meticulously planning and understanding the application's requirements, the 74AHC1G08GW,165 can be effectively incorporated into a wide range of electronic designs, offering reliable and efficient performance.
