If you're here, it's likely because you're looking for high-performance electrical components designed specifically for industrial or rail applications.In this article, we'll delve into Phoenix Contact's 3210813 SP-H 2.5/1-M plug, its features, applications, and why it stands out. Whether you're an engineer, purchasing manager, or just someone looking for a reliable terminal solution, this article will give you a comprehensive look at the 3210813 and how it fits your needs.

• What is a Phoenix Contact 3210813?
• Key Features of the 3210813
• Technical Specifications of the 3210813
• Advantages of the 3210813
• Applications of the 3210813 SP-H 2.5/1-M Plug
• Assembly and Installation Tips

What is a Phoenix Contact 3210813?

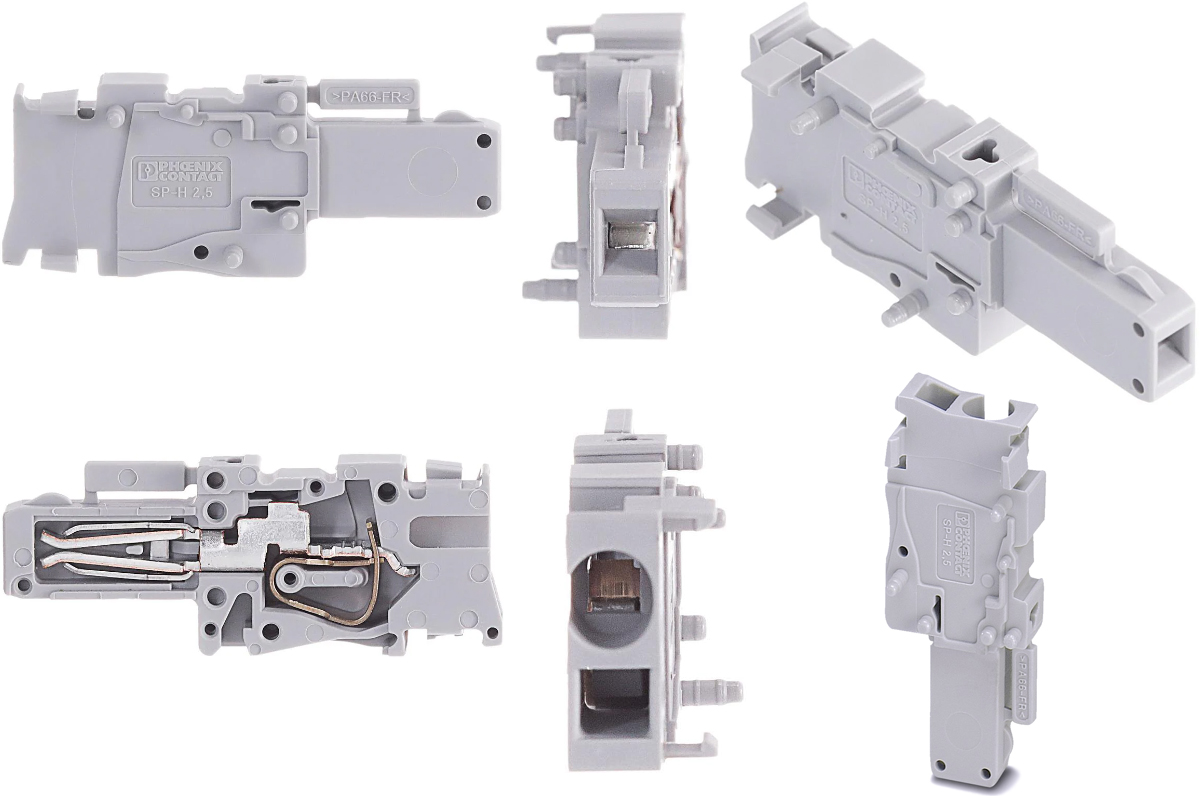

The 3210813 is a DIN rail terminal plug, also known as SP-H_2, 5/1-M, designed by Phoenix Contact, a world-renowned manufacturer of industrial automation and electrical components.The combination of plug and spring cage connection technology brings new breakthroughs for electrical wiring applications. The product has been designed to simplify assembly, reduce connection times and ensure durability even in the most demanding environments. Its rugged construction and adherence to strict international standards make it the first choice for railway, industrial control panel and other applications.

Key Features of the 3210813

To fully understand the unique benefits of the Phoenix Contact 3210813 3 Connector Terminal Blocks, let's first look at its core features:

Connection Method:spring-cage connection
The spring cage connection is a connection with a spring clamp wire, without the use of screw tools, which can effectively improve the connection efficiency and vibration resistance.
This design is particularly suitable for dynamic applications where reliable seismic performance is required, such as railway systems or industrial equipment.

Compact Design
With a width of just 5.2 mm, the plug is compact enough to fit into tight spaces while still offering robust functionality. Its slim design maximizes space efficiency on DIN rails.

High Current and Voltage Ratings
The plug supports a nominal voltage of 500v and a nominal current of 24a, making it suitable for demanding electrical systems.

Wide Conductor Compatibility
3210813 can accommodate a conductor cross-section from 0.08 mm² to 4mm². This makes it compatible with a variety of wires, ensuring flexibility in applications.

Durable Insulation
Made from PA66 flame-retardant material, the plug offers excellent insulation and fire resistance, with a flammability rating of UL 94 V0. This makes it both safe and reliable in critical applications.

Tested for Railway Applications
The Pluggable Terminal Block 3210813 is a high performance terminal plug designed for harsh environments, the following are its main application.

Simple Assembly
The plug is designed for on-site assembly. Single-position plug elements can be snapped together quickly, enabling users to create customized solutions effortlessly.

Technical Specifications of the 3210813

Nominal Voltage: 500 V

Nominal Current: 24 A

Conductor Cross-Section: 0.08 mm² - 4 mm² (rigid), 0.08 mm² - 2.5 mm² (flexible)

Width: 5.2 mm

Height: 15.8 mm

Depth: 39 mm

Operating Temperature: -60°C to +105°C

Insulation Material: PA66

Standards: IEC 61984, DIN EN 45545-2

Fire Protection: HL 1 - HL 3 (railway standards)

Advantages of the 3210813

When choosing a terminal plug, reliability, efficiency and safety are Paramount. 3210813 With the following advantages, to meet a variety of application needs.

Ease of Use : The spring-cage connection simplifies wiring, eliminating the need for screws. Whether you're installing or maintaining the plug, it saves you time and effort. Even under high-vibration conditions, the connection remains stable and secure.

Space Optimization: Its compact design makes it ideal for applications where space is at a premium. You can fit multiple plugs on a single DIN rail without worrying about overcrowding.

Versatility:Thanks to its wide compatibility with various conductor sizes, the 3210813 can be used in diverse applications, from low-current control circuits to high-current power supply lines.

Safety First: The plug's compliance with rigorous fire safety and railway standards ensures peace of mind, especially in mission-critical environments. Its PA66 material offers exceptional insulation, heat resistance, and durability.

Customizable Solutions: The modular nature of the plug allows users to snap together single-position elements to create custom configurations. This level of flexibility is unmatched, enabling tailored solutions for specific needs.

Applications of the 3210813 SP-H 2.5/1-M Plug

The 3210813 is more than just a Terminal plug, it is a highly specialized component designed for demanding environments. Here are some of its key applications:

Railway Systemsz: Meets fire safety standards such as DIN EN 45545-2 and NFPA 130, ensuring safe operation in trains, metros, and other rail vehicles. Its vibration-resistant spring-cage connection makes it ideal for railway systems exposed to constant motion.

Industrial Automation: Perfect for control panels and power distribution systems. Its compact design and high current rating allow for efficient integration into industrial setups.

Energy Systems: The 500v voltage capacity and 24a current rating make it suitable for renewable energy installations, including solar and wind power generation systems.

Building Automation: Can be used in smart buildings to connect various control systems, including lighting, HVAC, and security.

Assembly and Installation Tips

To ensure optimal performance of the 3210813 Plug, follow these best practices during assembly and installation:

Prepare Conductors: Strip the wire to a length of 8-10 mm as per the product specifications. Ensure that the stripped portion of the wire is clean and intact.

Insert Conductors: Simply push the conductor into the spring-cage connection point. The spring mechanism will automatically grip the wire securely.

Test Connections: After assembly, test the connections to ensure electrical continuity and stability.

Use the Correct Accessories: If additional protection is needed, use cable housings or TWIN ferrules for improved durability.

Conclusion

With its advanced spring-cage connection, compact design, and compliance with strict safety standards, the 3210813 meets the demanding requirements of railway, industrial, and energy applications. If you need a plug that is efficient, safe and durable, the 3210813 will be your best choice. Not only can it handle a wide range of demanding applications, but it also greatly simplifies the installation process, making it an indispensable and reliable choice for electrical systems.

Frequently Asked Questions (FAQs)

Q1: Can the 3210813 be used in outdoor environments?

Yes, the plug is designed to withstand a wide operating temperature range (-60°C to +105°C) and can handle challenging environmental conditions. However, additional protection may be needed for prolonged outdoor use.

Q2: Is it suitable for high-vibration environments?

Absolutely. The spring-cage connection is specifically engineered to resist vibration, making it ideal for railway systems, industrial machinery, and other dynamic applications.

Q3: What standards does it comply with?

The 3210813 complies with IEC 61984, UL 94 V0, DIN EN 45545-2, and other international safety standards.
