Name: 24LC256T-I/SN
Brand: Microchip Technology
SKU: 24LC256T-I/SN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology 24LC256T-I/SN

Part No.:: 24LC256T-I/SN

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: 24LC256T-I/SN.pdf

Description:: IC EEPROM 256KBIT I2C 8SOIC

In Stock:: 2781

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

24LC256T-I/SN Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
256Kb (32K x 8)
MemoryInterface:
I²C
ClockFrequency:
400 kHz
WriteCycleTime-WordPage:
5ms
AccessTime:
900 ns
Voltage-Supply:
2.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

24LC256T-I/SN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 24LC256T-I/SN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 24LC256T-I/SN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

24LC256T-I/SN information

Views：

24LC256T-I/SN Typical application Circuitry

The 24LC256T-I/SN is an EEPROM (Electrically Erasable Programmable Read-Only Memory) chip that has a capacity of 256Kbits and uses the I2C interface for data communication.

Core Functions

Data storage is the essential function of the 24LC256T-I/SN. The chip retains information even when the power supply is cut off, making it ideal for non-volatile data storage.

Typical Use Cases

This chip is commonly seen in embedded systems, consumer electronics, configuration settings storage, and various kinds of data logging applications.

Key Features

- 256Kbits of EEPROM memory

- I2C Interface with up to 400kHz speed

- 2.5V to 5.5V operating voltage range

- Endurance of one million write cycles

- Data retention for over 200 years

Example Scenario: Data Logging in Weather Monitoring System

In this scenario, we'll use the 24LC256T-I/SN to log temperature and humidity data in a weather monitoring system.

Important Design Aspects

1. Voltage Levels

- Make sure the operating voltage supplied to the 24LC256T-I/SN is within the specified range of 2.5V to 5.5V.

2. I2C Bus Termination

- Attach pull-up resistors to the SDA and SCL lines to ensure stable I2C communication.

3. Data Write Protection

- Consider the state of the Write Protect (WP) pin to either enable or prevent data writing to the EEPROM.

4. Circuit Layout

- Be mindful of circuit noise and wire lengths that might interfere with data integrity.

Circuit Connections Detail

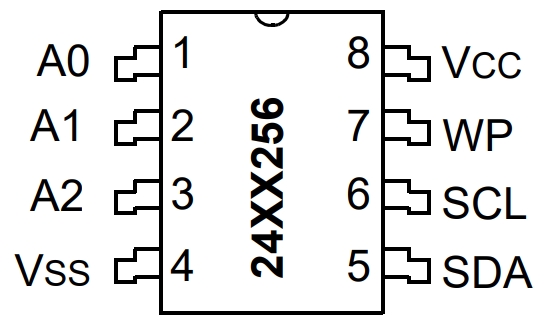

1. Voltage and Ground Connections: The VCC (Pin 8) needs to be connected to a power supply between 2.5V and 5.5V, while the VSS (Pin 4) must be connected to the ground.

2. SDA and SCL Lines: The SDA (Pin 5) and SCL (Pin 6) of the 24LC256T-I/SN should be wired to their counterparts on the microcontroller. Pull-up resistors, typically 4.7kΩ, should be incorporated.

3. Address Configuration: The A0, A1, and A2 pins (Pins 1, 2, and 3 respectively) are to be connected based on the desired I2C address for the 24LC256T-I/SN. For a single chip, these can be tied to the ground.

4. Write Protect: The WP pin (Pin 7) can be connected to VCC if you want to disable write operations, or to ground if writing to the EEPROM is required.

By keeping these guidelines in mind, the 24LC256T-I/SN can be smoothly integrated into a weather monitoring system for data logging. Special attention to voltage compatibility, I2C line termination, and data write protection can make for a reliable and robust application.
