Microchip Technology 24AA02E48T-I/OT

Part No.:: 24AA02E48T-I/OT

Manufacturer:: Microchip Technology

Package:: SC-74A, SOT-753

Datasheet:: 24AA02E48T-I/OT.pdf

Description:: IC EEPROM 2KBIT I2C SOT23-5

In Stock:: 2142

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

24AA02E48T-I/OT Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
2Kb (256 x 8)
MemoryInterface:
I²C
ClockFrequency:
400 kHz
WriteCycleTime-WordPage:
5ms
AccessTime:
900 ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

24AA02E48T-I/OT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 24AA02E48T-I/OT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 24AA02E48T-I/OT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

24AA02E48T-I/OT information

Views：

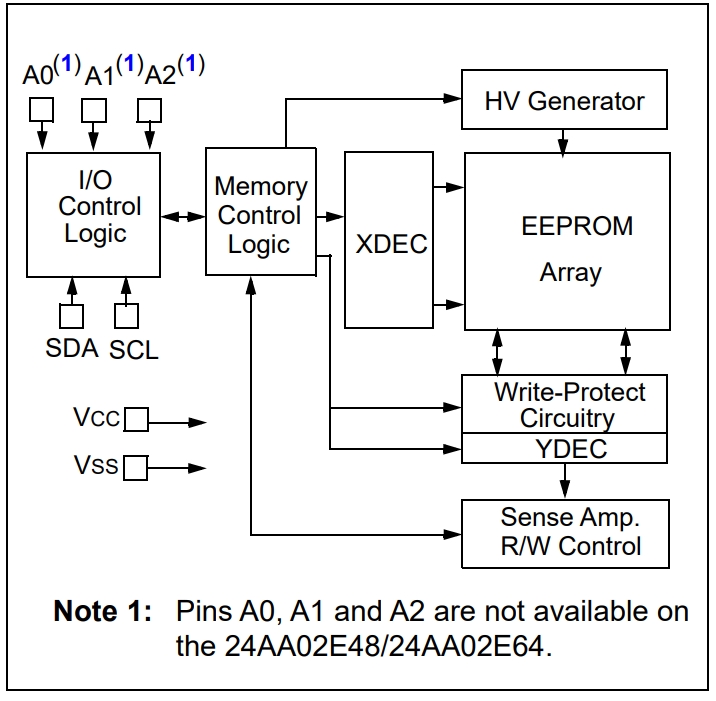

24AA02E48T-I/OT Typical application Circuitry

The 24AA02E48T-I/OT is an EEPROM (Electrically Erasable Programmable Read-Only Memory) chip that also incorporates an embedded EUI-48-compatible MAC (Media Access Control) address. It is used for data storage and identification purposes.

Functionality

The 24AA02E48T-I/OT is primarily a data storage device, with a unique MAC address hardwired into it, making it ideal for applications that require network identification.

Application Scenarios

It can be used in various applications like IoT devices, networked sensors, Ethernet-connected devices, and other situations where a unique MAC address and data storage are required.

Parameter Features

- Memory Size: 2Kbits

- Interface: I2C/SMBus Compatible

- Voltage Range: 1.7V to 5.5V

- Pre-programmed globally unique EUI-48 MAC address

Example Circuit: IoT Device Identification and Data Storage

Let's consider an IoT device requiring both a unique identifier and small data storage.

Circuit Design Considerations

1. Supply Voltage

- The 24AA02E48T-I/OT operates between 1.7V and 5.5V. Ensure that your power supply falls within this range.

2. Pull-up Resistors

- I2C requires pull-up resistors on both the SDA and SCL lines. These resistors should be connected to the power supply voltage.

3. Communication Speed

- I2C speed settings must be compatible between the 24AA02E48T-I/OT and the microcontroller you're using.

4. Addressing

- Since the 24AA02E48T-I/OT comes with a unique MAC address, you must make sure that no address conflicts occur in your network.

Circuit Connections

1. Power Supply: Connect VCC (Pin 8) of the 24AA02E48T-I/OT to a 3.3V or 5V power supply, depending on your setup.

2. Ground Connection: Connect VSS (Pin 4) of the 24AA02E48T-I/OT to the circuit's ground.

3. SDA Line: Hook up SDA (Pin 5) to the microcontroller's SDA line. Attach a pull-up resistor (typically 4.7kΩ) between this line and the power supply.

4. SCL Line: Hook up SCL (Pin 6) to the microcontroller's SCL line. Similarly, include a pull-up resistor between this line and the power supply.

5. Address Pins: A0, A1, A2 (Pins 1, 2, 3) are generally left unconnected or connected to ground, depending on whether you want to change the I2C address.

6. Optional Connections: WP (Write Protect, Pin 7) can be tied to ground to enable write operations or to VCC to disable them.

By meticulously planning and executing these steps, you can efficiently integrate the 24AA02E48T-I/OT into an IoT device for identification and data storage purposes. Special attention needs to be given to the I2C speed compatibility, pull-up resistors, and power supply specifications to ensure seamless operation.
